780059 by PT-Coupling | DEF Nozzle | Stainless Steel Spout | 3/4" BSPP Inlet | 14 Flow Rate | 19mm Spout Size

Save $240.96

$649.15

$649.15 - $649.15

$649.15

$408.19

$408.19 - $408.19

$408.19

PT Coupling

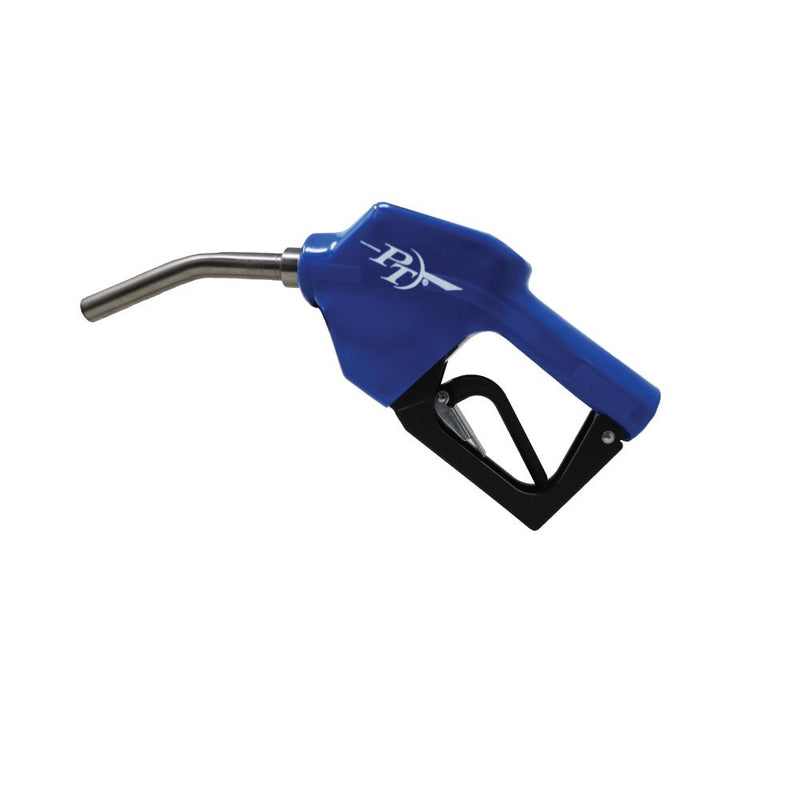

DEF Nozzle with Stainless Steel Spout

This Hybrid Nozzle provides the performance and construction specifications required for DEF delivery without the burden of a heavy Stainless Steel Nozzle.

Made in the USA.

Specifications for Variant SKU: 780059 PT-Coupling

Overview:
This Hybrid Nozzle provides the performance and construction specifications required for DEF delivery without the burden of a heavy Stainless Steel Nozzle. PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
Aluminum Nozzle casting is internally and externally coated with a DuPont™ product that is impervious to DEF Internal components are made of Stainless Steel or Delrin® plastic Pure Teflon® stem packing eliminates leaks Made in the USA
Safety Notes:
Meets all required specifications set by ISO 2241 for DEF delivery

Part Name	Item #	Spout Size	BSPP Inlet	Flow Rate	Weight (LBS)
*DEF Nozzle w/ MFD Safety Spout	780058	19mm	3/4"	14	2.5 lbs.
DEF Nozzle -Stainless Steel Spout	780059	19mm	3/4"	14	2.5 lbs.

* DEF Misfueling Device required for DEF Nozzle w/MFD Safety Spout!

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
