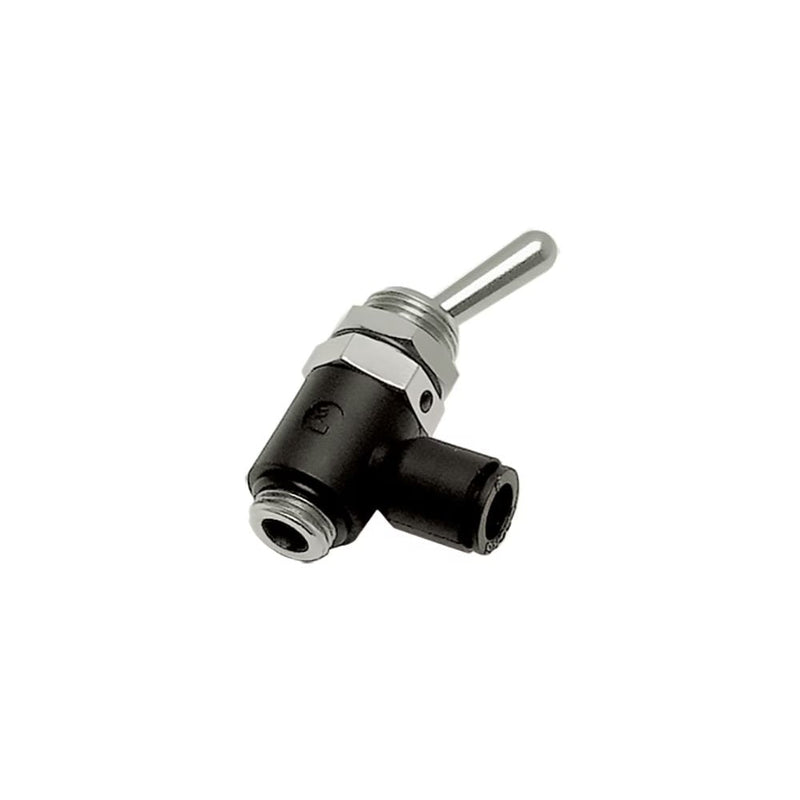

7801 06 13 by Parker | Legris 3/2 Manual Switch-Operated Valve Control | 6 mm Tube Size x 1/4" Male BSPP Thread | 90° Elbow | Polymer

7801 06 13 by Parker | Legris 3/2 Manual Switch-Operated Valve Control | 6 mm Tube Size x 1/4" Male BSPP Thread | 90° Elbow | Polymer

Save $49.55 Save $49.55
$123.88
$123.88 - $123.88
$123.88
$74.33
$74.33 - $74.33
$74.33

by Parker Hannifin
Manually-Operated Valves:7801 3/2 Manual Switch-Operated Valve, Control, Male BSPP Thread
Specifications for Variant SKU: 7801 06 13 Parker
Series: 7801 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
    Model 0669: 0 to 16 bar
  • Working Temperature: -10°C to +80°C
    Model 0669: -5°C to +70°C
Advantages:
      Manual switch-operated valves:
  • 2 models:
      • - 3/2: opening, closing, venting
      - 2/2: opening, closing
  • Can be positioned through 360°
  • Manual switch-operated valves:
  • Uni-directional use ensures the downstream circuit is vented
  • Identification of the venting system by the color (red)
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Bolt: Manual switch-operated valve: nickel-plated brass with seal
    Sleeve valve: Nickel-plated brass
  • Body: Manual switch-operated valve: Technical polymer
    Sleeve valve: Nickel-plated brass
  • Seal: NBR
  • Lever: Nickel-plated brass
  • Locking nut: Nickel-plated brass
Part Number ØD C F F1 H L1 L2 Kg
7801 04 10 4 mm 1/8" 14 mm 14 mm 43 mm 7 mm 18.5 mm .023 Kg
7801 06 10 6 mm 1/8" 14 mm 14 mm 43 mm 7 mm 20 mm .023 Kg
7801 06 13 6 mm 1/4" 17 mm 14 mm 50.5 mm 9 mm 22 mm .050 Kg
7801 08 10 8 mm 1/8" 14 mm 14 mm 43 mm 7 mm 25 mm .026 Kg
