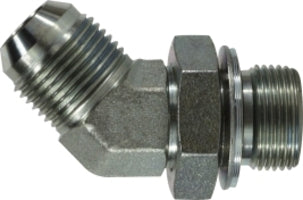

78024 (7802-4) by Midland | Hydraulic JIC to BSPP Male | 7/16-20 Male JIC 37° Flare x 1/4-19 Male BSPP | 45° Elbow | Steel

78024 (7802-4) by Midland | Hydraulic JIC to BSPP Male | 7/16-20 Male JIC 37° Flare x 1/4-19 Male BSPP | 45° Elbow | Steel

Save $2.96 Save $2.96
$7.40
$7.40 - $7.40
$7.40
$4.44
$4.44 - $4.44
$4.44

Midland Industries
Hydraulic Adapters: JIC to BSPP Male 45° Elbow - Steel

Inventory @ Manufacturers Warehouse: 205 Units
Specifications for Variant SKU: 78024 Midland
Shape (Orientation): 45 Degree
Ends Configuration: 7/16 Male JIC, 1/4 Male BSPP
Material(s): Steel
Technical Info:
Crossover Series:
3802 35J
Part Number Male JIC 37° Flare
(1)		 Male JIC 37° Flare Thread
(1)		 Male BSPP
(2)		 Male BSPP Thread
(2)
78024
(7802-4) 		1/4" 7/16-20 1/4" 1/4-19
7802-04-06 1/4" 7/16-20 3/8" 3/8-19
7802-06-04 3/8" 9/16-18 1/4" 1/4-19
78026
(7802-6) 		3/8" 9/16-18 3/8" 3/8-19
7802-06-06 3/8" 9/16-18 3/8" 3/8-19
7802-06-08 3/8" 9/16-18 1/2" 1/2-14
7802-08-06 1/2" 3/4-16 3/8" 3/8-19
78028
(7802-8) 		1/2" 3/4-16 1/2" 1/2-14
780212
(7802-12) 		3/4" 1-1/16-12 3/4" 3/4-14
780216
(7802-16) 		1" 1-5/16-12 1" 1-11
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
