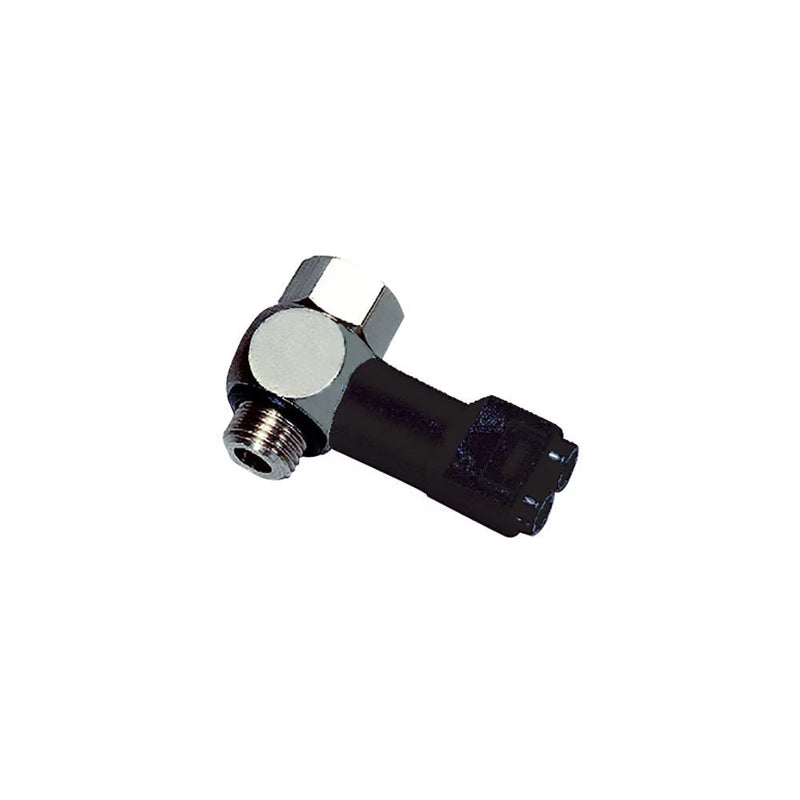

7818 04 17 by Parker | Legris Pneumatic Sensor Fitting | 4 mm Tube Size x 3/8" Male BSPP Thread | 22 mm Hex | 61 mm Length | Straight | Polymer

Save $6.78

$74.62

$74.62 - $74.62

$74.62

$67.84

$67.84 - $67.84

$67.84

by Parker Hannifin
Sensor Fittings:7818 Pneumatic Sensor Fitting, Male BSPP and Metric Thread

Quantity

More payment options

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 7818 04 17 Parker
Series:	7818 Series
Shape (Orientation):	Straight
Material(s):	Zamak, Polymer, Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 3 to 8 bar Working Temperature: -15°C to +60°C Back Pressure: -15°C to +60°C Switching Time: -15°C to +60°C Open/Closed Contact: Model 7828: 2A/0-48V / 2A/250V50 Hz
Advantages:	Lockable adjustment possible of the setpoint Output pressure adjustment options marked on the screw Installation in a manifold allows optimum output pressures to be delivered specific parts of the circuit Designed for applications where cylinder force needs to be controlled: marking, sleeving, crimping cylinders etc.
Regulations:	RoHS PED REACH
Component Materials:	Body: Technical polymer Screw: Brass Seal: NBR


Part Number	ØD	C	F	H	J	L	L1	Kg
7818 04 19*	4 mm	M5x0.8	8 mm	16 mm	11 mm	43.5 mm	5.5 mm	.025 Kg
7818 04 10	4 mm	1/8"	14 mm	23 mm	16 mm	44.5 mm	8 mm	.025 Kg
7818 04 13	4 mm	1/4"	17 mm	28 mm	19.5 mm	46.5 mm	10 mm	.025 Kg
7818 04 17	4 mm	3/8"	22 mm	29 mm	23.5 mm	49 mm	12 mm	.083 Kg
7818 04 21	4 mm	1/2"	27 mm	30 mm	31.5 mm	52.5 mm	16 mm	.125 Kg

* Bolt zinc passivated steel
