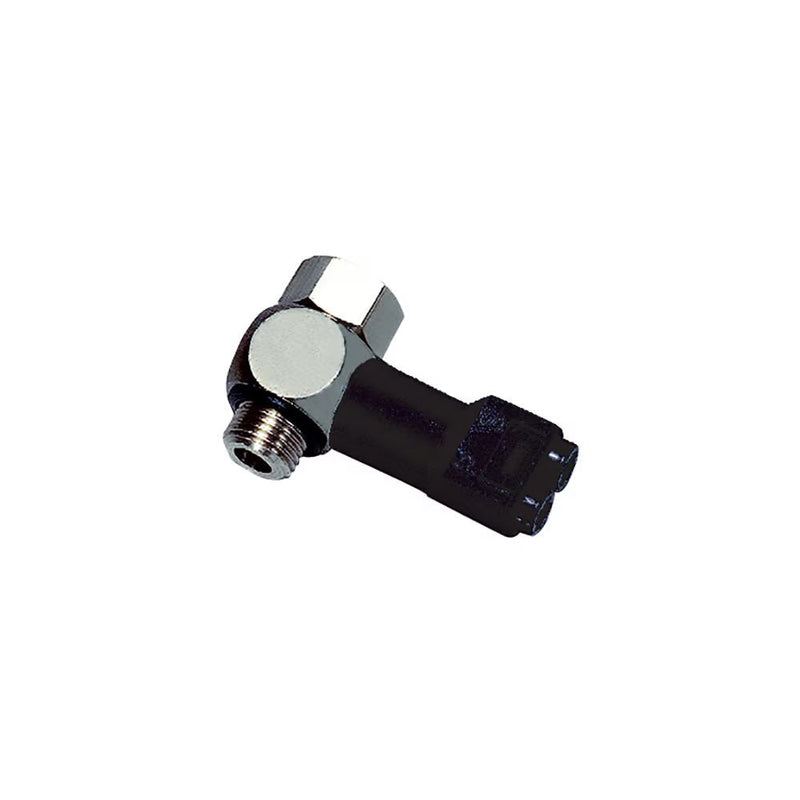

7818 04 21 by Parker | Legris Pneumatic Sensor Fitting | 4 mm Tube Size x 1/2" Male BSPP Thread | 27 mm Hex | 68.5 mm Length | Straight | Polymer

Save $6.09

$83.78

$83.78 - $83.78

$83.78

$77.69

$77.69 - $77.69

$77.69

by Parker Hannifin
Sensor Fittings:7818 Pneumatic Sensor Fitting, Male BSPP and Metric Thread

Quantity

Specifications for Variant SKU: 7818 04 21 Parker
Series:	7818 Series
Shape (Orientation):	Straight
Material(s):	Zamak, Polymer, Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 3 to 8 bar Working Temperature: -15°C to +60°C Back Pressure: -15°C to +60°C Switching Time: -15°C to +60°C Open/Closed Contact: Model 7828: 2A/0-48V / 2A/250V50 Hz
Advantages:	Lockable adjustment possible of the setpoint Output pressure adjustment options marked on the screw Installation in a manifold allows optimum output pressures to be delivered specific parts of the circuit Designed for applications where cylinder force needs to be controlled: marking, sleeving, crimping cylinders etc.
Regulations:	RoHS PED REACH
Component Materials:	Body: Technical polymer Screw: Brass Seal: NBR


Part Number	ØD	C	F	H	J	L	L1	Kg
7818 04 19*	4 mm	M5x0.8	8 mm	16 mm	11 mm	43.5 mm	5.5 mm	.025 Kg
7818 04 10	4 mm	1/8"	14 mm	23 mm	16 mm	44.5 mm	8 mm	.025 Kg
7818 04 13	4 mm	1/4"	17 mm	28 mm	19.5 mm	46.5 mm	10 mm	.025 Kg
7818 04 17	4 mm	3/8"	22 mm	29 mm	23.5 mm	49 mm	12 mm	.083 Kg
7818 04 21	4 mm	1/2"	27 mm	30 mm	31.5 mm	52.5 mm	16 mm	.125 Kg

* Bolt zinc passivated steel
