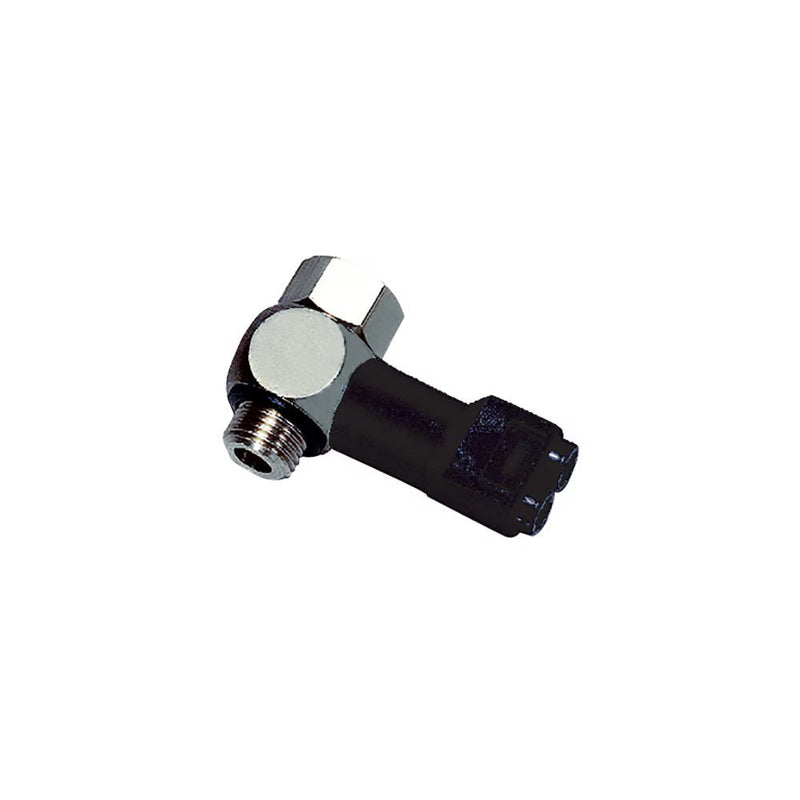

7818 19 13 by Parker | Legris Pneumatic Sensor Fitting | 1/4" Male/Female BSPP Thread | 17 mm Hex | 52.5 mm Length | Straight | Polymer

Save $5.22

$71.59

$71.59 - $71.59

$71.59

$66.37

$66.37 - $66.37

$66.37

by Parker Hannifin
Sensor Fittings:7818 Pneumatic Sensor, Male/Female BSPP Thread

Quantity

Specifications for Variant SKU: 7818 19 13 Parker
Series:	7818 Series
Shape (Orientation):	Straight
Material(s):	Zamak, Polymer, Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 3 to 8 bar Working Temperature: -15°C to +60°C Back Pressure: -15°C to +60°C Switching Time: -15°C to +60°C Open/Closed Contact: Model 7828: 2A/0-48V / 2A/250V50 Hz
Advantages:	Lockable adjustment possible of the setpoint Output pressure adjustment options marked on the screw Installation in a manifold allows optimum output pressures to be delivered specific parts of the circuit Designed for applications where cylinder force needs to be controlled: marking, sleeving, crimping cylinders etc.
Regulations:	RoHS PED REACH
Component Materials:	Body: Technical polymer Screw: Brass Seal: NBR


Part Number	C	F	H	J	L	L1	Kg
7818 19 10	1/8"	14 mm	23 mm	16 mm	40.5 mm	8 mm	.049 Kg
7818 19 13	1/4"	17 mm	28 mm	19.5 mm	42.5 mm	10 mm	.065 Kg
