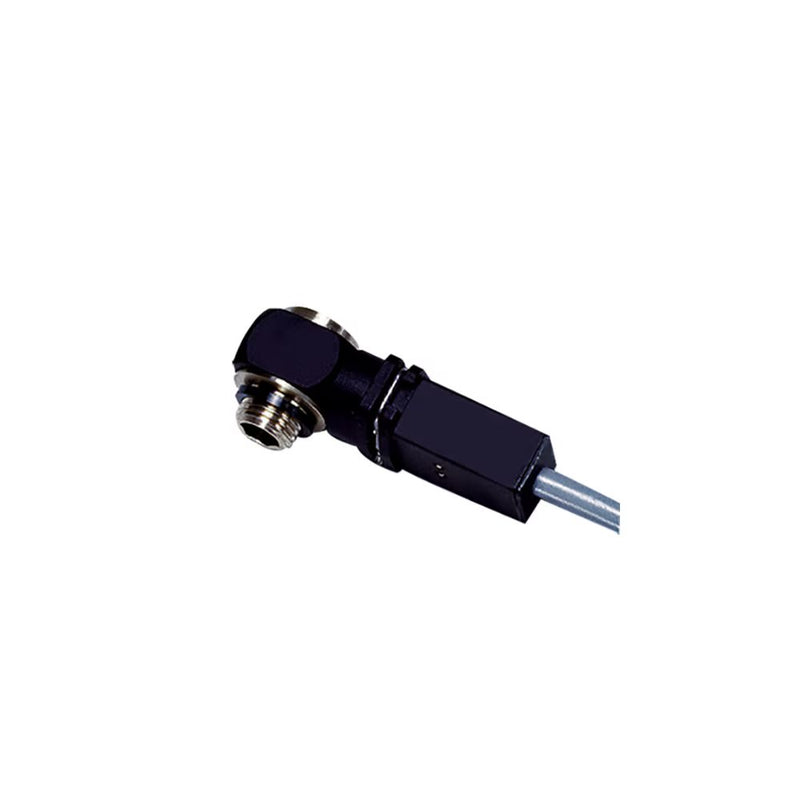

7829 00 14 by Parker | Pneumatic/Electric Threshold Sensor | 1/4" Male NPT Thread x 1/4" Female NPT Thread | 2.55" Length | Straight | Nylon

7829 00 14 by Parker | Pneumatic/Electric Threshold Sensor | 1/4" Male NPT Thread x 1/4" Female NPT Thread | 2.55" Length | Straight | Nylon

Save $8.91 Save $8.91
$122.56
$122.56 - $122.56
$122.56
$113.65
$113.65 - $113.65
$113.65

by Parker Hannifin
Pneumatic/Electric Sensors:7828/7829 - pneumatic/electric threshold sensor NPT or UNF
Specifications for Variant SKU: 7829 00 14 Parker
Series: 7829 Series
Shape (Orientation): Straight
Material(s): Brass, Nylon
Special Properties: Valved
Product Features:
  • Easy-to-Use
  • Suited to changes of series: no adjustment to position detectors is necessary
  • With Pneumatic Output
  • Totally pneumatic installation
      • 2 possible installations:
  • Supplied with permanent pressure (P1): produces a pneumatic signal when the back pressure threshold is reached
  • Supplied from the control valve-cylinder circuit on the opposite side: no unexpected pneumatic signal (S) can appear during pressurization due to the actuating pressure which supplies the sensor fitting (P1)
  • - With Electrical Output
  • Combined electrical and pneumatic installation
  • Installation with continuous electrical supply only (BU)
  • Guarantees an electrical signal when the back pressure threshold is reached
Markets:
  • Factory Automation
  • Wearing Apparel
  • Semiconductor
  • Packaging
Applications:
  • Pneumatic Circuits Pressure Drop Detection
Technologies:
  • Pressure sensor
  • Electric sensor
  • Pneumatic sensors
  • Pneumatic installation
  • Pressure regulator
  • Pneumatic system
  • Pneumatic fittings
Technical Characteristics
  • Fluids: Compressed air
  • Materials: brass, technical polymer, NBR, silicone free
  • Pressure: 3 to 8 bar
  • Temperature: -15°C to +60°C
  • Back pressure: 0.85 to 1 bar
  • Switching time: Model 7818: 3ms
Regulations:
  • DI: 2002/95/EC (RoHS)
  • RG: 1907/2006 (REACH)
  • DI: 97/23/EC (PED)
Product Types:
  • Pneumatic Sensor Fitting, Male BSPP and Metric Thread
  • Pneumatic Sensor, Male/Female BSPP Thread
  • Pneumatic/Electric Sensor, Male/Female BSPP and Metric Thread
Part Number NPT / UNF (C) E H H1 J L Oz
7828 00 20 10-32 8 mm .79" .39" .43" 1.93" 5.30 Oz
7829 00 11 1/8" 6 mm .79" .39" .63" 2.05" 6.10 Oz
7829 00 14 1/4" 8 mm .79" .39" .83" 2.13" 6.35 Oz
7829 00 18 3/8" 10 mm .87" .47" 1.10" 2.24" 7.50 Oz
7829 00 22 1/2" 12 mm 1.02" .55" 1.30" 2.28" 9.35 Oz
