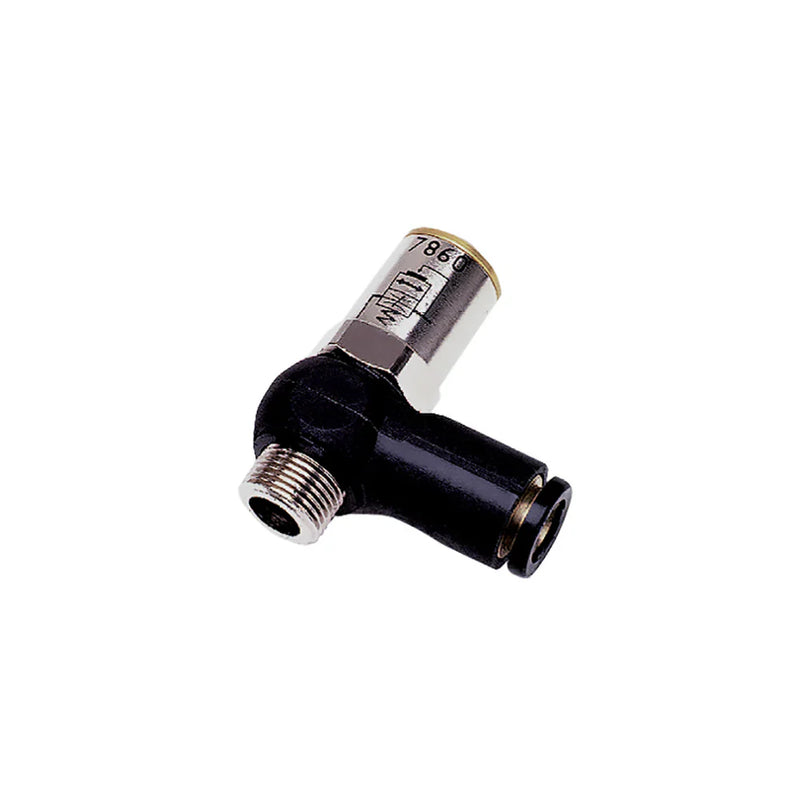

7860 10 17 by Parker | Legris Soft Start Fitting for Isolating Valve | 10 mm Tube Size x 3/8" Male BSPP Thread | 22 mm Hex | 90° Elbow | Polymer

7860 10 17 by Parker | Legris Soft Start Fitting for Isolating Valve | 10 mm Tube Size x 3/8" Male BSPP Thread | 22 mm Hex | 90° Elbow | Polymer

Save $9.60 Save $9.60
$131.89
$131.89 - $131.89
$131.89
$122.29
$122.29 - $122.29
$122.29

by Parker Hannifin
Soft Start Fittings:7860 Soft Start Fitting for Isolating Valve, Male BSPP Thread
Specifications for Variant SKU: 7860 10 17 Parker
Series: 7860 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 3 to bar
  • Working Temperature: -15°C to +60°C
Advantages:
      Protection of equipment and personnel:
  • Prevents the risk of damage after any stoppage which requires the system to be vented
  • Returns the control valve to its initial position in total safety
  • Adjustment of the pressurization speed
      • Mounted on FRL:
  • 7860: yellow identification washer
  • Protection for the whole system
  • Adjustment of the pressurization speed
      • Mounted on Control Valve
  • 7870: black identification washer
  • Protection of individual circuits
  • Mounted on the control valve, it optimizes the pressurization speed of a specific cylinder
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Technical polymer or nickel-plated brass
  • Screw: Nickel-plated brass
  • Washer: Technical polymer
  • Body: Technical polymer or nickel-plated brass
Part Number ØD C F H (max) H (min) J L L1 Kg
7860 08 13 8 mm 1/4" 17 mm 61 mm 54 mm 20 mm 35 mm 10 mm .064 Kg
7860 10 13 10 mm 1/4" 22 mm 62 mm 55 mm 25 mm 41 mm 12.5 mm .112 Kg
7860 10 17 10 mm 3/8" 22 mm 62 mm 55 mm 25 mm 41 mm 12.5 mm .115 Kg
