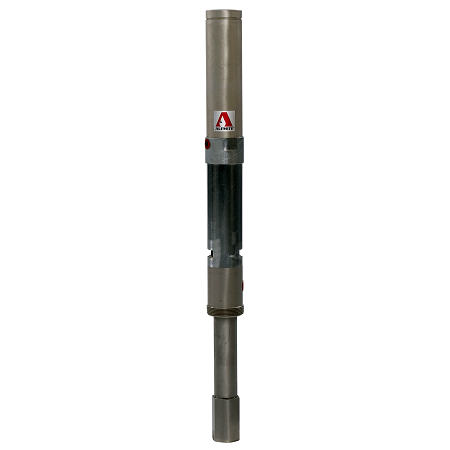

7880-C1 by Alemite | Chemical and Material Handling Pumps | Light | Medium Duty | Drum size: Stub | Material Inlet: 1" Female NPTF | Material Outlet: 3/8" Female NPTF | Seal Material: PTFE | Stainless Steel

Save $1,028.77

$3,600.69

$3,600.69 - $3,600.69

$3,600.69

$2,571.92

$2,571.92 - $2,571.92

$2,571.92

PRODUCT DESCRIPTION

Alemite Chemical and Material Handling Pumps - Light - Medium Duty

Specifications for Variant SKU: 7880-C1 Alemite

Applications:

Alemite Manual Pumps are simple to operate and require no electricity or compressed air.Alemite offers a variety of models fitting 25 Lb. pails up to 400 Lb. drums.
Alemite Class I and 2 Pumps are designed to handle light to medium fluids (5 to 4,000 cp) such as inks, flavoring and oils. The double ball downtube ensures positive priming for reliable operation. Recommended for dispensing appplications

Features:

Stainless steel and carbon steel models suitable for pumping corrosive liquids
1/4" air inlet
Stub pumps require downtube (included with 7216-4)

Recommended Accessories:
Single Post Hoist (2741-4 or 2742-4) for models 7216-S3, 7216-4, 7880-C1. Requires Adapter Plate (322593)

Part Number	Wetted Materials	Drum size	Material inlet	Material Outlet	Seal material	Pump Ratio	Free Flow per MinuteCycles per GallonWeight
7216-4	Carbon Steel	55 Gallon	NA	1" NPTF(f)	PTFE and Nylon II	1:1	14 Gallons	25	14Lb
7216-S3	Stainless Steel	55 Gallon	1" NPTF(f)	1" NPTF(f)	PTFE	1:1	14 Gallons	25	22Lb
7216-B	Carbon Steel	55 Gallon	NA	3/8" NPTF(f)	Buna	2:1	7 Gallons	32	18Lb
7222-B4	Carbon Steel	Stub	1-1/2" NPTF(f)	1" NPTF(f)	Flouroelastomer	1:1	14 Gallons	25	12Lb
7880-C1	Stainless Steel	Stub	1" NPTF(f)	3/8" NPTF(f)	PTFE	2.5:1	7 Gallons	38	14Lb
