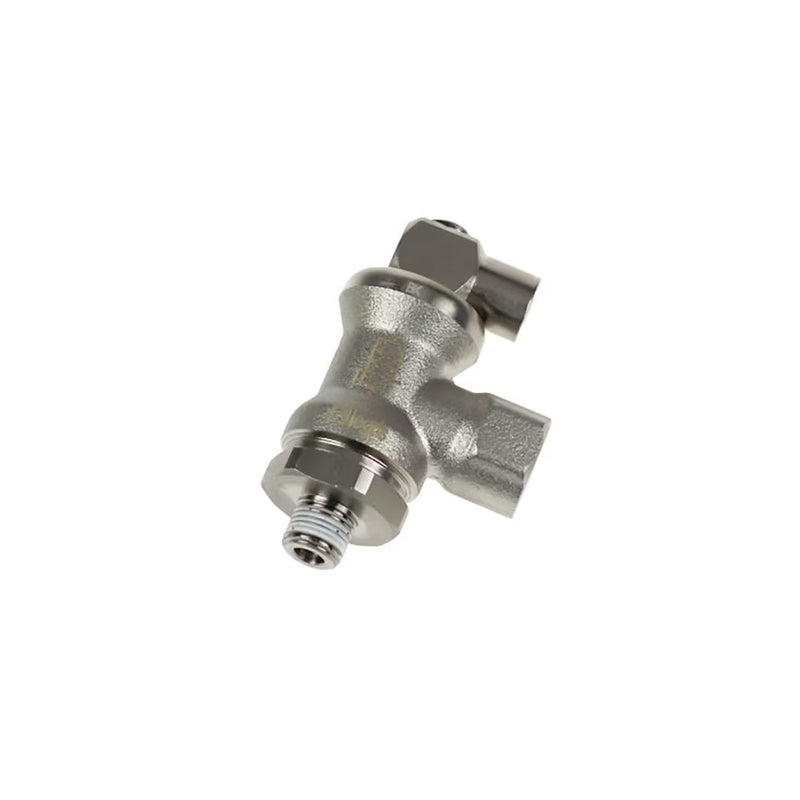

7886 14 14 by Parker | Blocking Valve | 1/4" Male NPT Thread x 1/4" Female NPT Thread x 10-32 UNF Female Thread | 21 mm Hex | 90° Elbow | Nickel-Plated Brass

7886 14 14 by Parker | Blocking Valve | 1/4" Male NPT Thread x 1/4" Female NPT Thread x 10-32 UNF Female Thread | 21mm Hex | 90° Elbow | Nickel-Plated Brass

Save $54.57 Save $54.57
$136.42
$136.42 - $136.42
$136.42
$81.85
$81.85 - $81.85
$81.85

by Parker Hannifin
Blocking Valves:7886 - lock out valves – threaded ports NPT or BSPT
Specifications for Variant SKU: 7886 14 14 Parker
Series: 7886 Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • NBR seals
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • -4° to 160° F (-20° to 71° C)
Leak Rate
  • <3.2SCCM
Number of Cycles
  • >10 Million at 68° F (20° C) and 1 HZ
Compatible Tubing:
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number NPT (C1) NPT (C2) E F G H H1 H2 J L Oz
7886 11 11 1/8" 1/8" .37" 21 mm .95" 2.03" 1.24" .79" .67" 1.04" 7.24 Oz
7886 14 14 1/4" 1/4" .55" 21 mm .95" 2.03" 1.24" .79" .67" 1.04" 4.59 Oz
7886 18 18 3/8" 3/8" .65" 24 mm 1.10" 2.19" 1.14" 1.04" 1.06" 1.34" 7.77 Oz
7886 22 22 1/2" 1/2" .65" 24 mm 1.10" 2.19" 1.14" 1.04" 1.06" 1.57" 8.47 Oz
