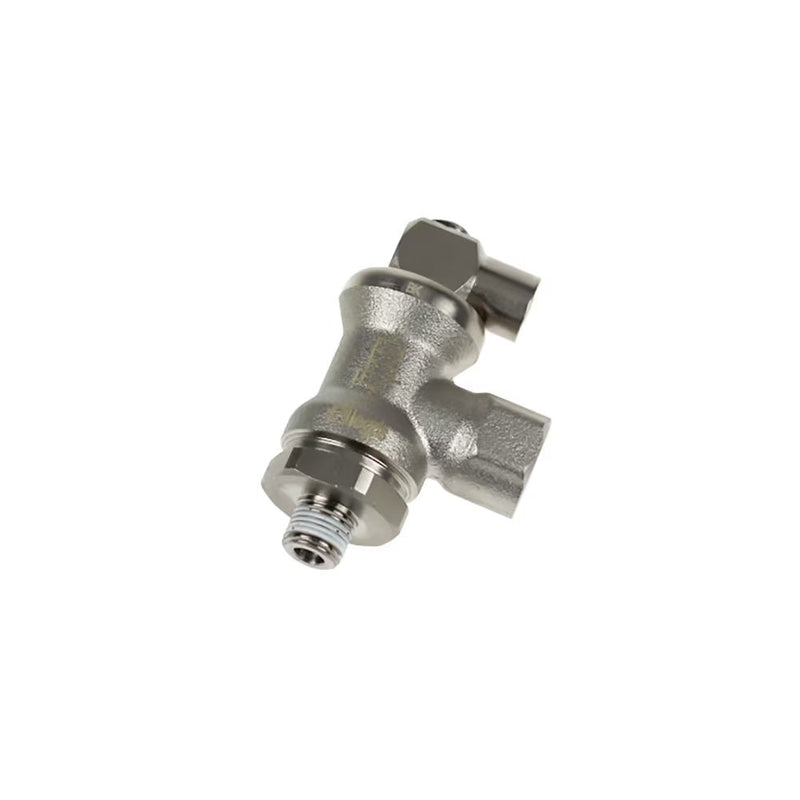

7886 22 22 by Parker | Blocking Valve | 1/2" Male NPT Thread x 1/2" Female NPT Thread x 10-32 UNF Female Thread | 24 mm Hex | 90° Elbow | Nickel-Plated Brass

7886 22 22 by Parker | Blocking Valve | 1/2" Male NPT Thread x 1/2" Female NPT Thread x 10-32 UNF Female Thread | 24mm Hex | 90° Elbow | Nickel-Plated Brass

Save $19.17 Save $19.17
$140.69
$140.69 - $140.69
$140.69
$121.52
$121.52 - $121.52
$121.52

by Parker Hannifin
Blocking Valves:7886 - lock out valves – threaded ports NPT or BSPT
Specifications for Variant SKU: 7886 22 22 Parker
Series: 7886 Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • NBR seals
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • -4° to 160° F (-20° to 71° C)
Leak Rate
  • <3.2SCCM
Number of Cycles
  • >10 Million at 68° F (20° C) and 1 HZ
Compatible Tubing:
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number NPT (C1) NPT (C2) E F G H H1 H2 J L Oz
7886 11 11 1/8" 1/8" .37" 21 mm .95" 2.03" 1.24" .79" .67" 1.04" 7.24 Oz
7886 14 14 1/4" 1/4" .55" 21 mm .95" 2.03" 1.24" .79" .67" 1.04" 4.59 Oz
7886 18 18 3/8" 3/8" .65" 24 mm 1.10" 2.19" 1.14" 1.04" 1.06" 1.34" 7.77 Oz
7886 22 22 1/2" 1/2" .65" 24 mm 1.10" 2.19" 1.14" 1.04" 1.06" 1.57" 8.47 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
