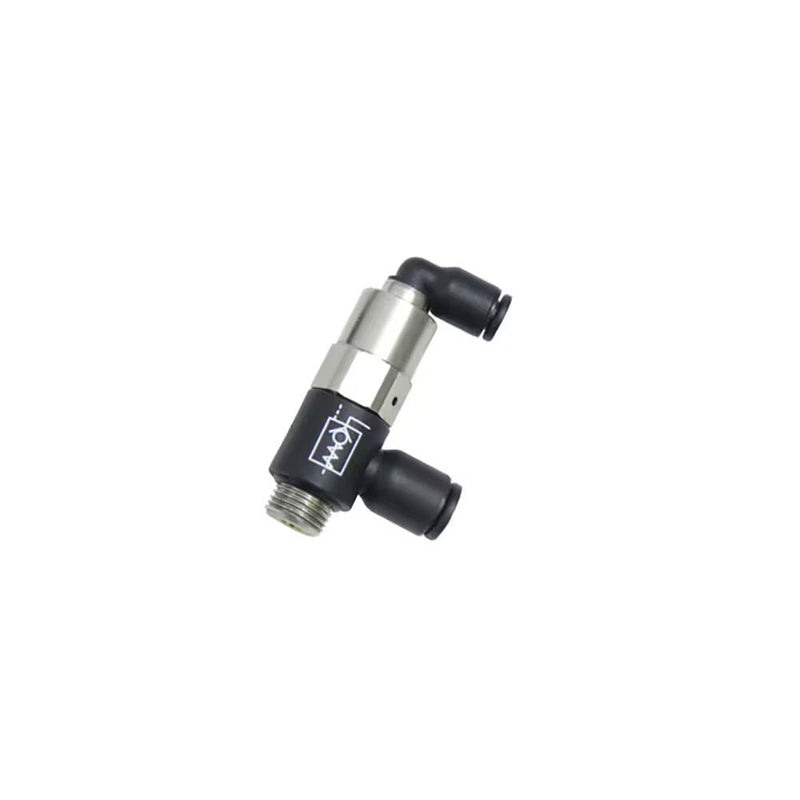

7892 10 17 by Parker | Legris Piloted Non-Return Valve | 10 mm Tube Size x 3/8" Male BSPP Thread | 20 mm Hex | 63 mm Length | Multi-Directional | Polymer

Save $8.58

$118.06

$118.06 - $118.06

$118.06

$109.48

$109.48 - $109.48

$109.48

by Parker Hannifin
Piloted Non-Return Valves:7892 Piloted Non-Return Valve, Male BSPP Thread

Quantity

Specifications for Variant SKU: 7892 10 17 Parker
Series:	7892 Series
Shape (Orientation):	Multi-Directional
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar Working Temperature: -5°C to +60°C Cracking Pressure: 0.3 bar
Advantages:	Mounted in pairs on a cylinder 3 functions in 1 compact product: - Piloted non-return valve - Flow control regulator - Manual exhaust Vent saves time on restart after maintenance operations
Regulations:	RoHS REACH PED
Component Materials:	Body: Nickel-plated brass Venting buttons: Nickel-plated brass Seals: NBR Gripping ring: Stainless Steel Piston: Nickel-plated brass Valve poppet: Nickel-plated brass, technical polymer Flow control regulator body: Technical polymer Adjustment screw: Nickel-Plated Brass Locking Nut: Nickel-Plated Brass


Part Number	ØD	C	E	F	G	H	H1	H2	L	Kg
7892 06 10	6 mm	1/8"	6 mm	13 mm	14 mm	42 mm	30 mm	7 mm	21 mm	.020 Kg
7892 06 13	6 mm	1/4"	9 mm	17 mm	18.5 mm	45 mm	32 mm	9 mm	23 mm	.042 Kg
7892 08 10	8 mm	1/8"	6 mm	13 mm	14 mm	42 mm	29 mm	9 mm	25 mm	.020 Kg
7892 08 13	8 mm	1/4"	9 mm	17 mm	18.5 mm	45 mm	32 mm	9 mm	27 mm	.042 Kg
7892 08 17	8 mm	3/8"	6 mm	20 mm	22.5 mm	57 mm	41 mm	11 mm	28 mm	.093 Kg
7892 10 17	10 mm	3/8"	6 mm	20 mm	22.5 mm	57 mm	41 mm	11 mm	31 mm	.144 Kg
7892 10 21	10 mm	1/2"	10 mm	24 mm	28 mm	63 mm	47 mm	16 mm	36 mm	.109 Kg
7892 12 21	12 mm	1/2"	10 mm	24 mm	28 mm	63 mm	47 mm	16 mm	36 mm	.150 Kg
