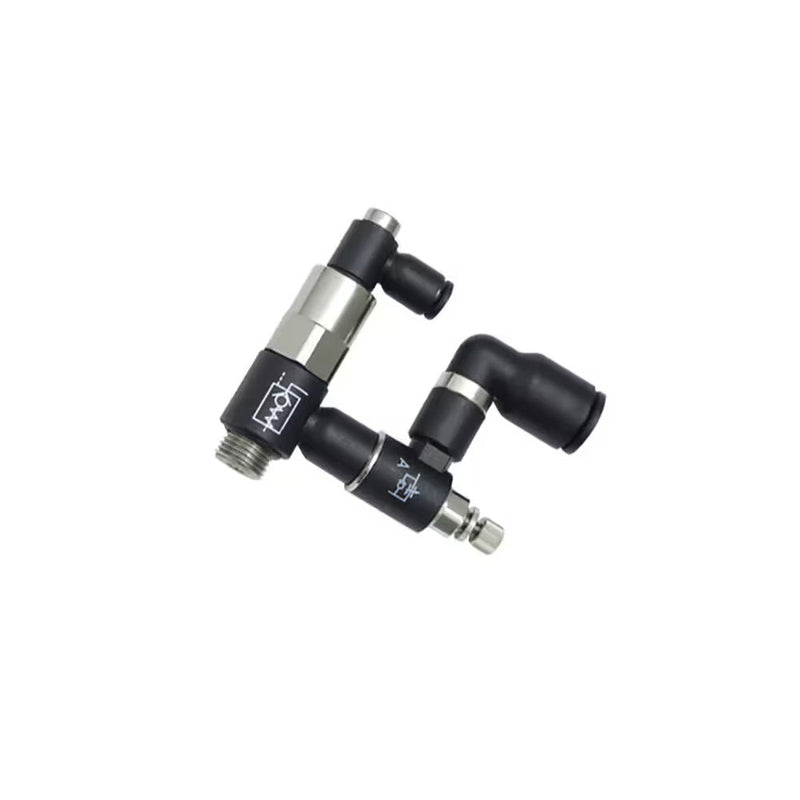

7894 10 21 by Parker | Legris Piloted Non-Return Valve with Flow Regulator Exhaust | 10 mm Tube Size x 1/2" Male BSPP Thread | 24 mm Hex (F1) | 17 mm Hex (F2) | 88 mm Length | Multi-Directional | Polymer

Save $17.27

$237.46

$237.46 - $237.46

$237.46

$220.19

$220.19 - $220.19

$220.19

by Parker Hannifin
Piloted Non-Return Valves:7894 Piloted Non-Return Valve with Flow Regulator Exhaust, Male BSPP Thread

Quantity

Specifications for Variant SKU: 7894 10 21 Parker
Series:	7894 Series
Shape (Orientation):	Multi-Directional
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar Working Temperature: -5°C to +60°C Cracking Pressure: 0.3 bar
Advantages:	Mounted in pairs on a cylinder 3 functions in 1 compact product: - Piloted non-return valve - Flow control regulator - Manual exhaust Vent saves time on restart after maintenance operations
Regulations:	RoHS REACH PED
Component Materials:	Body: Nickel-plated brass Venting buttons: Nickel-plated brass Seals: NBR Gripping ring: Stainless Steel Piston: Nickel-plated brass Valve poppet: Nickel-plated brass, technical polymer Flow control regulator body: Technical polymer Adjustment screw: Nickel-Plated Brass Locking Nut: Nickel-Plated Brass


Part Number	ØD	C	E	F1	F2	G	H	H1	H2	H3	L	L (Max)	L1	Kg
7894 06 10	6 mm	1/8"	6 mm	13 mm	8 mm	14 mm	46 mm	7 mm	24 mm	31 mm	48.5 mm	51 mm	16 mm	.041 Kg
7894 06 13	6 mm	1/4"	9 mm	17 mm	10 mm	18.5 mm	49 mm	11 mm	18 mm	31 mm	59.5 mm	65 mm	17 mm	.067 Kg
7894 08 10	8 mm	1/8"	6 mm	13 mm	8 mm	14 mm	46 mm	7 mm	27 mm	31 mm	48.5 mm	51 mm	22 mm	.051 Kg
7894 08 13	8 mm	1/4"	9 mm	17 mm	10 mm	18.5 mm	49 mm	11 mm	23 mm	31 mm	59.5 mm	65 mm	23 mm	.068 Kg
7894 08 17	8 mm	3/8"	7 mm	20 mm	14 mm	22.5 mm	69 mm	13 mm	21 mm	40 mm	67.5 mm	73 mm	23 mm	.060 Kg
7894 10 17	10 mm	3/8"	7 mm	20 mm	14 mm	22.5 mm	69 mm	13 mm	29 mm	40 mm	67.5 mm	73 mm	26 mm	.061 Kg
7894 10 21	9 mm	1/2"	9 mm	24 mm	17 mm	28 mm	76 mm	12.5 mm	26 mm	47 mm	74 mm	81 mm	26 mm	.234 Kg
7894 12 21	12 mm	1/2"	9 mm	24 mm	17 mm	28 mm	76 mm	12.5 mm	27 mm	47 mm	74 mm	81 mm	30 mm	.237 Kg
