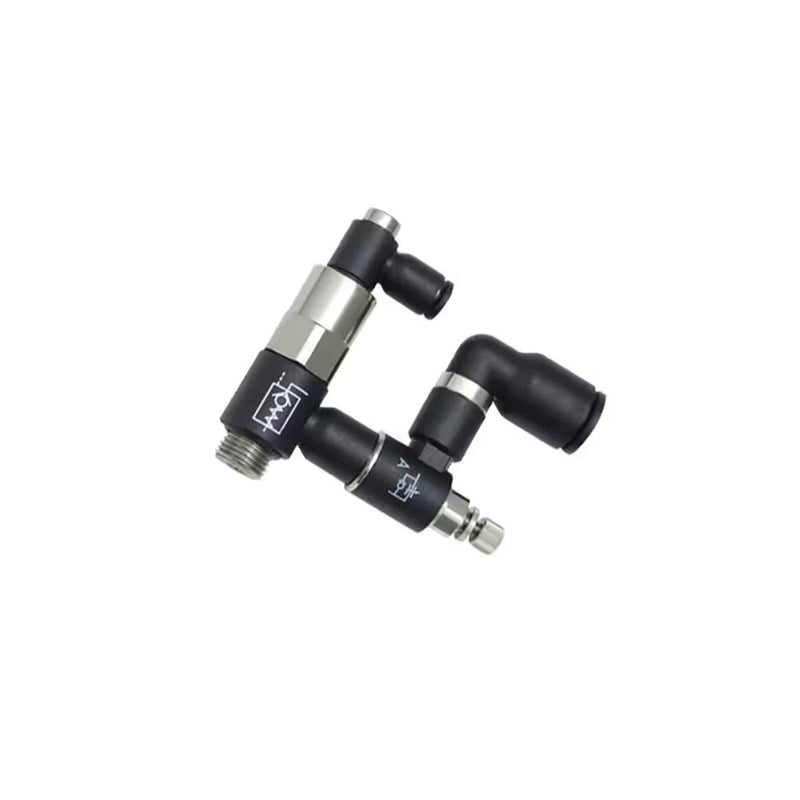

7894 12 21 by Parker | Legris Piloted Non-Return Valve with Flow Regulator Exhaust | 12 mm Tube Size x 1/2" Male BSPP Thread | 24 mm Hex (F1) | 17 mm Hex (F2) | 88 mm Length | Multi-Directional | Polymer

7894 12 21 by Parker | Legris Piloted Non-Return Valve with Flow Regulator Exhaust | 12 mm Tube Size x 1/2" Male BSPP Thread | 24 mm Hex (F1) | 17 mm Hex (F2) | 88 mm Length | Multi-Directional | Polymer

Save $18.02 Save $18.02
$247.82
$247.82 - $247.82
$247.82
$229.80
$229.80 - $229.80
$229.80

by Parker Hannifin
Piloted Non-Return Valves:7894 Piloted Non-Return Valve with Flow Regulator Exhaust, Male BSPP Thread
Specifications for Variant SKU: 7894 12 21 Parker
Series: 7894 Series
Shape (Orientation): Multi-Directional
Material(s): Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: -5°C to +60°C
  • Cracking Pressure: 0.3 bar
Advantages:
  • Mounted in pairs on a cylinder
  • 3 functions in 1 compact product:
    - Piloted non-return valve
    - Flow control regulator
    - Manual exhaust
  • Vent saves time on restart after maintenance operations
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Nickel-plated brass
  • Venting buttons: Nickel-plated brass
  • Seals: NBR
  • Gripping ring: Stainless Steel
  • Piston: Nickel-plated brass
  • Valve poppet: Nickel-plated brass, technical polymer
  • Flow control regulator body: Technical polymer
  • Adjustment screw: Nickel-Plated Brass
  • Locking Nut: Nickel-Plated Brass
Part Number ØD C E F1 F2 G H H1 H2 H3 L L (Max) L1 Kg
7894 06 10 6 mm 1/8" 6 mm 13 mm 8 mm 14 mm 46 mm 7 mm 24 mm 31 mm 48.5 mm 51 mm 16 mm .041 Kg
7894 06 13 6 mm 1/4" 9 mm 17 mm 10 mm 18.5 mm 49 mm 11 mm 18 mm 31 mm 59.5 mm 65 mm 17 mm .067 Kg
7894 08 10 8 mm 1/8" 6 mm 13 mm 8 mm 14 mm 46 mm 7 mm 27 mm 31 mm 48.5 mm 51 mm 22 mm .051 Kg
7894 08 13 8 mm 1/4" 9 mm 17 mm 10 mm 18.5 mm 49 mm 11 mm 23 mm 31 mm 59.5 mm 65 mm 23 mm .068 Kg
7894 08 17 8 mm 3/8" 7 mm 20 mm 14 mm 22.5 mm 69 mm 13 mm 21 mm 40 mm 67.5 mm 73 mm 23 mm .060 Kg
7894 10 17 10 mm 3/8" 7 mm 20 mm 14 mm 22.5 mm 69 mm 13 mm 29 mm 40 mm 67.5 mm 73 mm 26 mm .061 Kg
7894 10 21 9 mm 1/2" 9 mm 24 mm 17 mm 28 mm 76 mm 12.5 mm 26 mm 47 mm 74 mm 81 mm 26 mm .234 Kg
7894 12 21 12 mm 1/2" 9 mm 24 mm 17 mm 28 mm 76 mm 12.5 mm 27 mm 47 mm 74 mm 81 mm 30 mm .237 Kg
