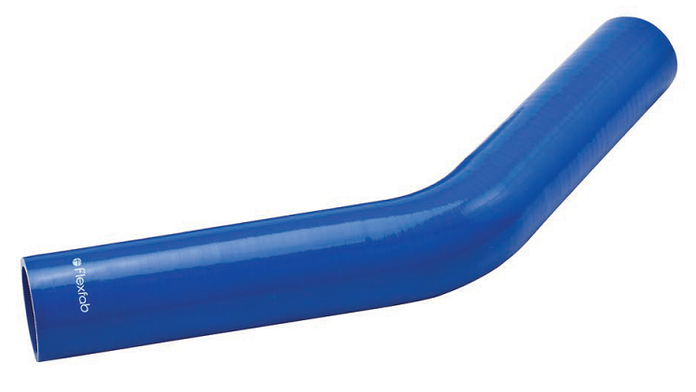

7896-150 FlexFab Series 7896 3-Ply 45 deg. Silicone Elbow - 1.50" ID - 1.82" OD - Blue - 6"

7896-150 by FlexFab | Series 7896 | 3-ply | 1.50" ID | 1.82" OD | Blue | 45° Elbow | Silicone | 6" Leg Length

Save $15.39 Save $15.39
$53.87
$53.87 - $53.87
$53.87
$38.48
$38.48 - $38.48
$38.48

Flexfab Industrial Hose - Series 7884 and 7896 - 90 deg. and 40 deg. Silicone Elbows
Specifications for Variant SKU: 7896-150 Flexfab
Series: Series 7896
Hose Color(s): Blue
Internal Diameter: 1.50in
Outer Diameter: 1.82in
Tubing Construction: Silicone
Cover Construction: Silicone
Applicable Specs & Approvals: SAE J20 R1 Class A, TMC RP303B Class I Grade II
Construction:
  • Silicone hose with 3-plies of Meta-Aramid Reinforcement
Specifications:
  • Meets or exceeds the operating requirements of SAE J20 R1 Class A
  • Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
  • Custom Wall Thickness is .140"/.190"
  • Temperature range is -65°F (-54°C) to +500°F (+260°C)
  • Working pressure is 1/3 of the burst pressure
Applications:
  • For heavy duty pressure connections in hostile engine environments
  • Resists hardening, cracking, cold leaks, aging, and many chemicals
  • Ideal for extreme temperature and various pressure ranges where high performance levels are required
  • For connection between the turbocharger and the engine
  • Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment
Part Number Inside Diameter Outside Diameter Leg Length - Inches(Avail. Clamp Space) Bend Radius Inches Burst Pressure Weight lbs Clamp
SAE J20 R1 TMC
7884 Series: 90° Silicone Elbows
7884-075 0.75" 1.07" 6.00 1.50" 325 125 0.50 lbs FLX2582-0012
7884-100 1.00" 1.32" 6.00 2.00" 300 125 0.50 lbs FLX2582-0016
7884-125 1.25" 1.57" 6.00 2.50" 275 125 0.50 lbs FLX2582-0020 or FLX2584-0212
7884-150 1.50" 1.82" 6.00 3.00" 250 125 0.50 lbs FLX2582-0024 or FLX2584-0212
7884-175 1.75" 2.07" 6.00 3.50" 225 125 0.50 lbs FLX2582-0028 or FLX2584-0262
7884-200 2.00" 2.32" 6.00 4.00" 200 100 0.50 lbs FLX2582-0032 or FLX2584-0262
7884-225 2.25" 2.57" 6.00 3.38" 175 100 1.00 lbs FLX2582-0036 or FLX2582-0312
7884-250 2.50" 2.82" 6.50 3.75" 150 100 1.00 lbs FLX2582-0040 or FLX2582-0312
7884-275 2.75" 3.07" 7.00 4.13" 125 100 1.00 lbs FLX2582-0044 or FLX2582-0362
7884-300 3.00" 3.32" 7.50 4.50" 100 100 1.00 lbs FLX2582-0048 or FLX2582-0362
7884-350 3.50" 3.82" 8.50 5.25" 75 100 1.50 lbs FLX2582-0056 or FLX2582-0412
7884-400 4.00" 4.32" 9.50 6.00" 50 100 1.50 lbs FLX2582-0064 or FLX2582-0462
7884-500 5.00" 5.32" 13.50 7.50" N/A N/A 1.50 lbs FLX2584-0562
7896 Series: 45° Silicone Elbows
7896-075 0.75" 1.07" 6.00 4.00" 325 125 0.50 lbs FLX2582-0012
7896-100 1.00" 1.32" 6.00 4.00" 300 125 0.50 lbs FLX2582-0016
7896-125 1.25" 1.57" 6.00 4.00" 275 125 0.50 lbs FLX2582-0020 or FLX2584-0212
7896-150 1.50" 1.82" 6.00 4.00" 250 125 0.50 lbs FLX2582-0024 or FLX2584-0212
7896-175 1.75" 2.07" 6.00 4.00" 225 125 0.50 lbs FLX2582-0028 or FLX2584-0262
7896-200 2.00" 2.32" 6.00 4.00" 200 100 0.50 lbs FLX2582-0032 or FLX2584-0262
7896-225 2.25" 2.57" 6.00 4.00" 175 100 1.00 lbs FLX2582-0036 or FLX2582-0312
7896-250 2.50" 2.82" 6.50 4.00" 150 100 1.00 lbs FLX2582-0040 or FLX2582-0312
7896-275 2.75" 3.07" 7.00 4.00" 125 100 1.00 lbs FLX2582-0044 or FLX2582-0362
7896-300 3.00" 3.32" 7.50 4.00" 100 100 1.50 lbs FLX2582-0048 or FLX2582-0362
7896-350 3.50" 3.82" 8.50 4.00" 75 100 2.00 lbs FLX2582-0056 or FLX2582-0412
7896-400 4.00" 4.32" 9.50 4.00" 50 100 2.50 lbs FLX2582-0064 or FLX2582-0462
*Specifications for reference only. Specific test data available on request.
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
