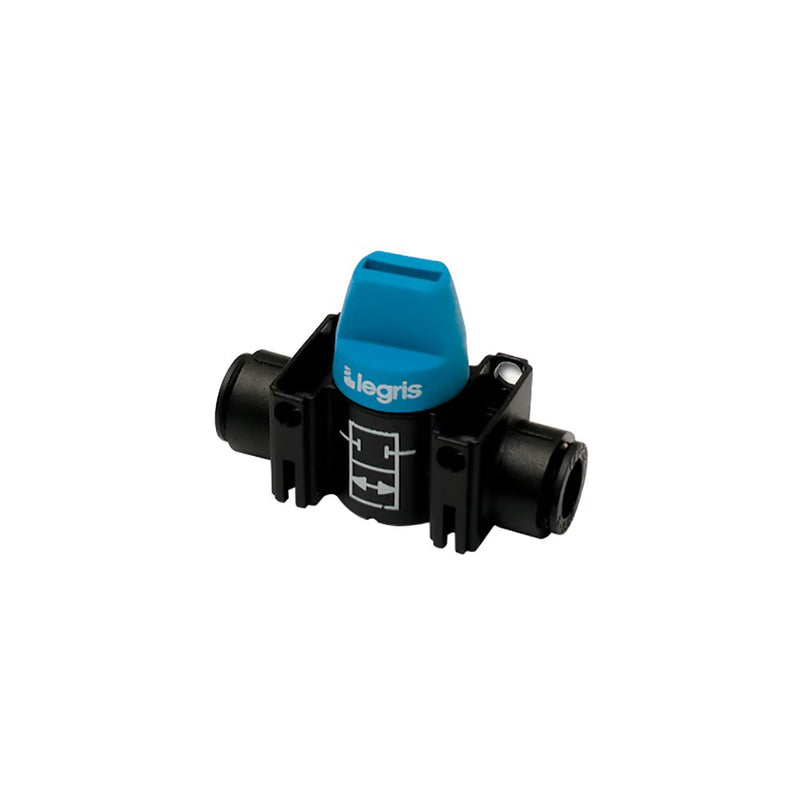

7910 10 00 by Parker | Legris In-Line Mini-Ball Valve | 10 mm Tube Size | 66 mm Length | Straight | Polymer

7910 10 00 by Parker | Legris In-Line Mini-Ball Valve | 10 mm Tube Size | 66 mm Length | Straight | Polymer | Pack of 5

$164.56 - $164.56
$164.56
$184.87
$184.87 - $184.87
$184.87

by Parker Hannifin
Mini Series:7910 2/2 In-Line Mini-Ball Valve

Package Quantity: 5 Units

Specifications for Variant SKU: 7910 10 00 Parker | 5 |
Series: Mini Series
Shape (Orientation): Straight
Material(s): Polymer, Nickel-Plated Brass, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Technical Characteristics:
  • Compatible Fluids: Compressed air, neutral gases
  • Working Pressure: Vacuum to 10 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Lightweight and compact
  • LF3000® push-in connections, static and dynamic sealing
  • Automatic seal wear compensation for long-term reliability
  • Ultra-compact handle, easy operation, screwdriver slot for difficult access
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Body: Technical Polymer
  • Stem seal: NBR
  • Seat seals: Graphite-impregnated polyamide
  • Lever: Technical Polymer
  • Stem: Brass
  • Wear-compensation seal: NBR
  • Adapter: Nickel-plated brass
  • Ball: Nickel-plated polished brass
Part Number ØD G H H1 K L N Kg
7910 04 00 4 mm 15 mm 37 mm 7.5 mm 22 mm 51 mm 16 mm .039 Kg
7910 06 00 6 mm 15 mm 37 mm 7.5 mm 22 mm 52 mm 16 mm .034 Kg
7910 08 00 8 mm 15 mm 37 mm 7.5 mm 22 mm 52 mm 16 mm .025 Kg
7910 10 00 10 mm 20 mm 43 mm 11 mm 30 mm 66 mm 22 mm .060 Kg
7910 12 00 12 mm 20 mm 43 mm 11 mm 30 mm 66 mm 22 mm .040 Kg
7910 56 00 1/4" - 1.46" .30" .87" 2.01" .64" .039 Kg
7910 60 00 3/8" - 1.69" .43" 1.18" 2.60" .64" .112 Kg
