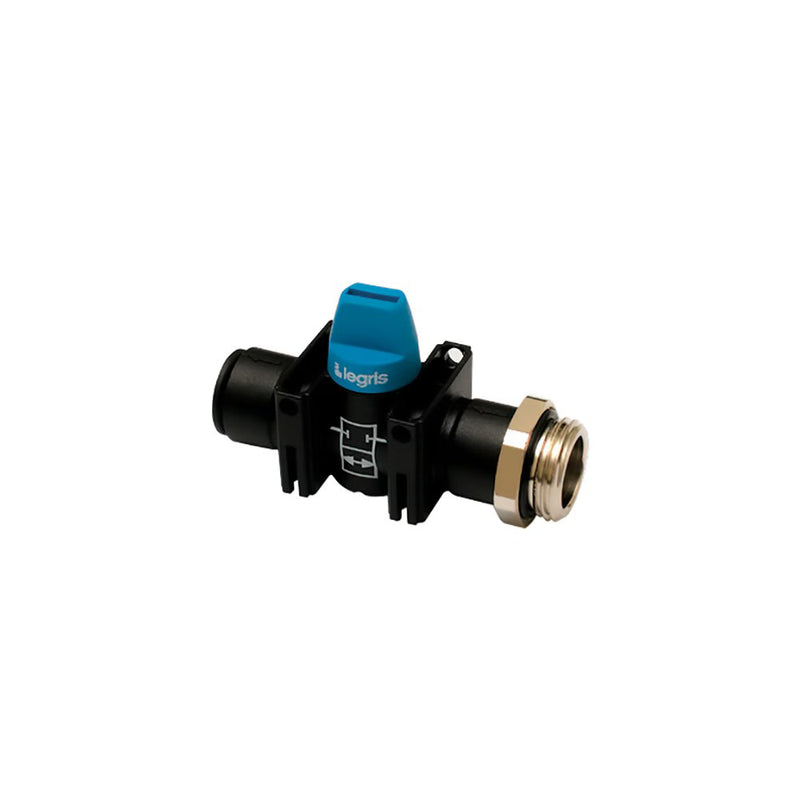

7911 10 17 by Parker | Legris In-Line Mini-Ball Valve | 10 mm Tube Size x 3/8" Male BSPP Thread | 20 mm Hex | 74 mm Length | Straight | Polymer | Pack of 5

Save $38.63

$334.10

$334.10 - $334.10

$334.10

$295.47

$295.47 - $295.47

$295.47

by Parker Hannifin
Mini Series:7911 2/2 In-Line Mini-Ball Valve, Male BSPP Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 7911 10 17 Parker \| 5 \|
Series:	Mini Series
Shape (Orientation):	Straight
Material(s):	Polymer, Nickel-Plated Brass, Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air, neutral gases Working Pressure: Vacuum to 10 bar Working Temperature: -20°C to +80°C
Advantages:	Lightweight and compact LF3000® push-in connections, static and dynamic sealing Automatic seal wear compensation for long-term reliability Ultra-compact handle, easy operation, screwdriver slot for difficult access
Regulations:	PED RoHS REACH
Component Materials:	Body: Technical Polymer Stem seal: NBR Seat seals: Graphite-impregnated polyamide Lever: Technical Polymer Stem: Brass Wear-compensation seal: NBR Adapter: Nickel-plated brass Ball: Nickel-plated polished brass


Part Number	ØD	C	E	F	G	H	K	L	L1	N	Kg
7911 06 10	6 mm	1/8"	5 mm	13 mm	14 mm	37 mm	22 mm	62 mm	37 mm	16 mm	.045 Kg
7911 08 13	8 mm	1/4"	5.5 mm	16 mm	17.5 mm	37 mm	22 mm	61 mm	35 mm	16 mm	.040 Kg
7911 10 17	10 mm	3/8"	5.5 mm	20 mm	22 mm	43 mm	30 mm	74 mm	41 mm	22 mm	.075 Kg
7911 12 21	12 mm	1/2"	7.5 mm	24 mm	26 mm	43 mm	30 mm	75 mm	42 mm	22 mm	.075 Kg
