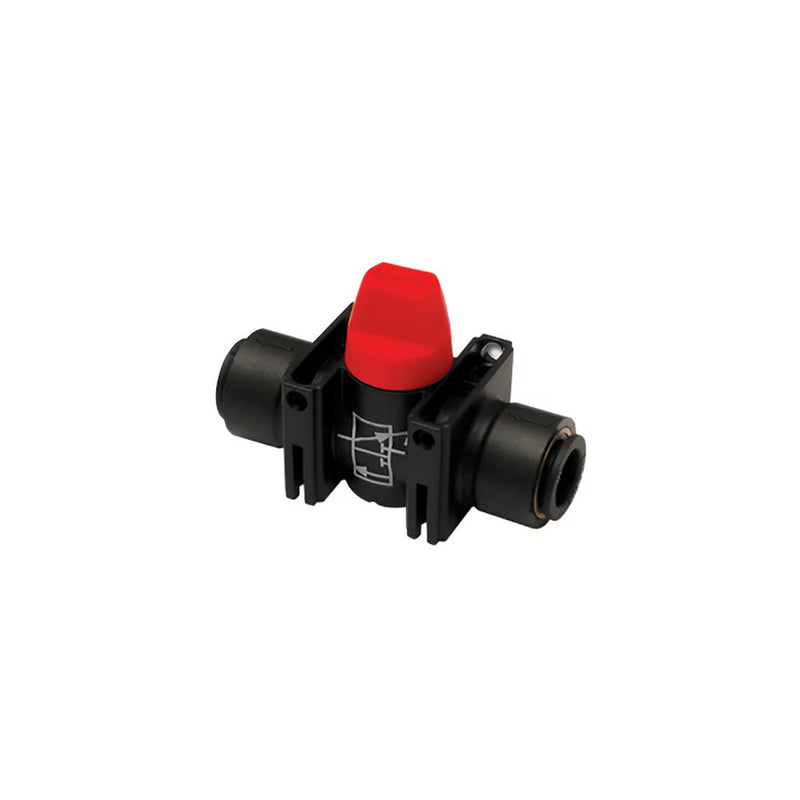

7913 04 00 by Parker | Legris In-Line Mini-Ball Valve w/ Vent | 4 mm Tube Size | 51 mm Length | Straight | Polymer | Pack of 10

Save $222.75

$556.88

$556.88 - $556.88

$556.88

$334.13

$334.13 - $334.13

$334.13

by Parker Hannifin
Mini Series:7913 3/2 In-Line Mini-Ball Valve with Vent

Package Quantity: 10 Units

Specifications for Variant SKU: 7913 04 00 Parker \| 10 \|
Series:	Mini Series
Shape (Orientation):	Straight
Material(s):	Polymer, Nickel-Plated Brass, Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air, neutral gases Working Pressure: Vacuum to 10 bar Working Temperature: -20°C to +80°C
Advantages:	Lightweight and compact LF3000® push-in connections, static and dynamic sealing Automatic seal wear compensation for long-term reliability Ultra-compact handle, easy operation, screwdriver slot for difficult access
Regulations:	PED RoHS REACH
Component Materials:	Body: Technical Polymer Stem seal: NBR Seat seals: Graphite-impregnated polyamide Lever: Technical Polymer Stem: Brass Wear-compensation seal: NBR Adapter: Nickel-plated brass Ball: Nickel-plated polished brass


Part Number	ØD	G	H	H1	K	L	N	Kg
7913 04 00	4 mm	15 mm	37 mm	7.5 mm	22 mm	51 mm	16 mm	.040 Kg
7913 06 00	6 mm	15 mm	37 mm	7.5 mm	22 mm	52 mm	16 mm	.035 Kg
7913 08 00	8 mm	15 mm	37 mm	7.5 mm	22 mm	52 mm	16 mm	.025 Kg
7913 10 00	10 mm	20 mm	43 mm	11 mm	30 mm	66 mm	22 mm	.060 Kg
7913 12 00	12 mm	20 mm	43 mm	11 mm	30 mm	66 mm	22 mm	.045 Kg
7913 56 00	1/4"	-	1.46"	.30"	.87"	2.00"	.64"	.041 kg
7913 60 00	3/8"	-	1.69"	.43"	1.18"	2.60"	.87"	.115 kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
