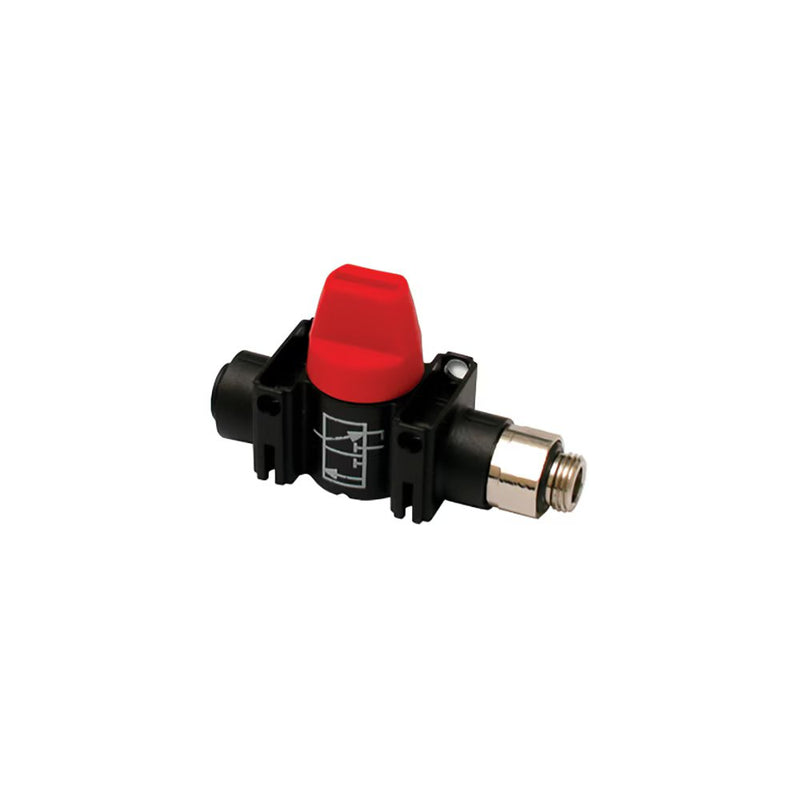

7915 04 11 by Parker | Legris In-Line Mini Ball Valve | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 13 mm Hex | 2.44" Length | Straight | Polymer

7915 04 11 by Parker | Legris In-Line Mini Ball Valve | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 13 mm Hex | 2.44" Length | Straight | Polymer | Pack of 10

Save $221.95 Save $221.95
$554.88
$554.88 - $554.88
$554.88
$332.93
$332.93 - $332.93
$332.93

by Parker Hannifin
Mini Series:7915 - 3/2, with vent, with male thread and push-to-connect port NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 7915 04 11 Parker | 10 |
Series: Mini Series
Shape (Orientation): Straight
Material(s): Polymer, Nickel-Plated Brass, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight, Mini/Micro Size
Product Features:
      Optimum Solution
  • Full Flow
  • Marked with the pneumatic symbol for identification of its function
  • Lightweight and compact
  • Extremely compact, easy-to-operate lever
  • Lever with screwdriver slot to facilitate operation
      • Proven Technology - Three in-line versions:
  • Excellent static and dynamic sealing
  • High-strength polyamide
  • Automatic seal wear compensation for long-term reliability
  • 100% leak-tested in production
  • Date coding to guarantee quality and traceability
Applications:
  • Robotics
  • Vacuum
  • Semi-Conductors
  • Packaging
  • Textile
  • Pneumatics
Pressure Range
  • 145 psi (10 bar)
Temperature Range
  • -4° to 176° F (-20° to 80° C)
Compatible Fluids
  • Compressed air only
Part Number ØD NPT (C) F H J K L L1 N Oz
7915 04 11 5/32" 1/8" 13 mm 1.46" .55" .87" 2.44" 1.46" .64" 1.76 Oz
7915 08 14 5/16" 1/4" 14 mm 1.46" .59" 1.18" 2.40" 1.61" .64" 2.40 Oz
7915 56 11 1/4" 1/8" 13 mm 1.46" .55" .87" 2.44" 1.46" .64" 1.90 Oz
7915 56 14 1/4" 1/4" 14 mm 1.46" .59" .87" 2.44" 1.38" .64" 2.40 Oz
7915 60 14 3/8" 1/4" 16 mm 1.69" .69" 1.18" 2.40" 1.65" .87" 3.60 Oz
7915 60 18 3/8" 3/8" 18 mm 1.69" .77" 1.18" 2.91" 1.65" .87" 4.94 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
