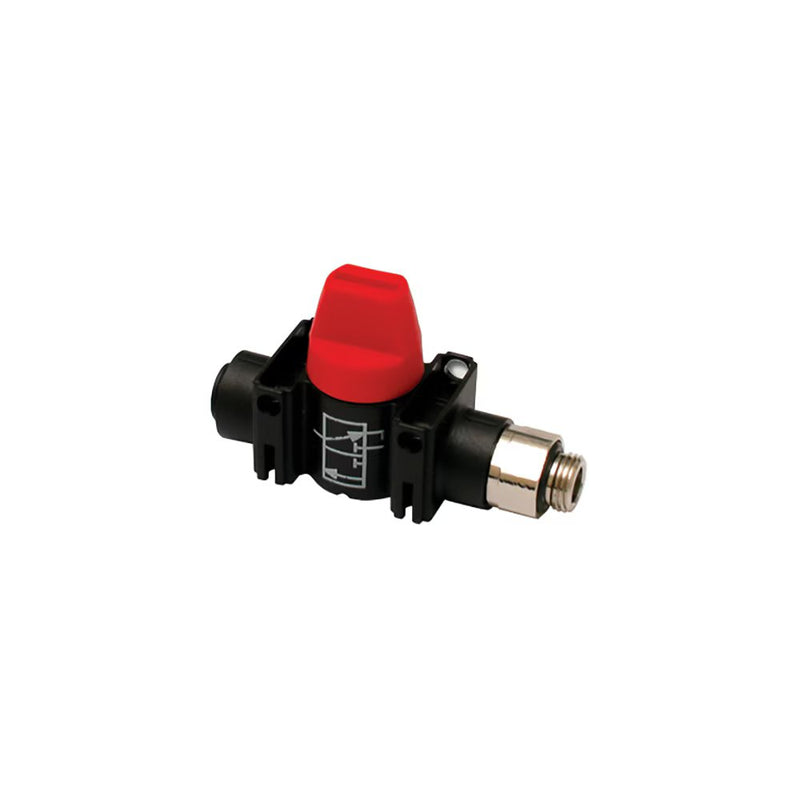

7915 56 11 by Parker | Legris In-Line Mini Ball Valve | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 13 mm Hex | 2.44" Length | Straight | Polymer | Pack of 10

Save $193.25

$483.12

$483.12 - $483.12

$483.12

$289.87

$289.87 - $289.87

$289.87

by Parker Hannifin
Mini Series:7915 - 3/2, with vent, with male thread and push-to-connect port NPT

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 7915 56 11 Parker \| 10 \|
Series:	Mini Series
Shape (Orientation):	Straight
Material(s):	Polymer, Nickel-Plated Brass, Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Mini/Micro Size

Product Features:	Optimum Solution Full Flow Marked with the pneumatic symbol for identification of its function Lightweight and compact Extremely compact, easy-to-operate lever Lever with screwdriver slot to facilitate operation Proven Technology - Three in-line versions: Excellent static and dynamic sealing High-strength polyamide Automatic seal wear compensation for long-term reliability 100% leak-tested in production Date coding to guarantee quality and traceability
Applications:	Robotics Vacuum Semi-Conductors Packaging Textile Pneumatics
Pressure Range	145 psi (10 bar)
Temperature Range	-4° to 176° F (-20° to 80° C)
Compatible Fluids	Compressed air only


Part Number	ØD	NPT (C)	F	H	J	K	L	L1	N	Oz
7915 04 11	5/32"	1/8"	13 mm	1.46"	.55"	.87"	2.44"	1.46"	.64"	1.76 Oz
7915 08 14	5/16"	1/4"	14 mm	1.46"	.59"	1.18"	2.40"	1.61"	.64"	2.40 Oz
7915 56 11	1/4"	1/8"	13 mm	1.46"	.55"	.87"	2.44"	1.46"	.64"	1.90 Oz
7915 56 14	1/4"	1/4"	14 mm	1.46"	.59"	.87"	2.44"	1.38"	.64"	2.40 Oz
7915 60 14	3/8"	1/4"	16 mm	1.69"	.69"	1.18"	2.40"	1.65"	.87"	3.60 Oz
7915 60 18	3/8"	3/8"	18 mm	1.69"	.77"	1.18"	2.91"	1.65"	.87"	4.94 Oz
