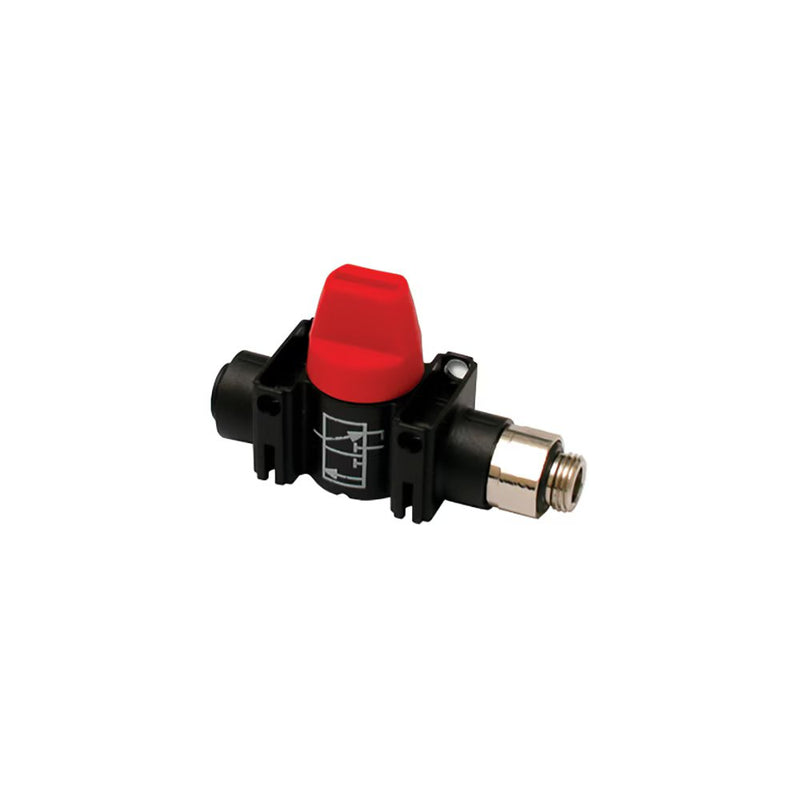

7915 08 14 by Parker | Legris In-Line Mini Ball Valve | 5/16" Push-to-Connect x 1/4" Male NPT Thread | 14 mm Hex | 2.40" Length | Straight | Polymer

7915 08 14 by Parker | Legris In-Line Mini Ball Valve | 5/16" Push-to-Connect x 1/4" Male NPT Thread | 14 mm Hex | 2.40" Length | Straight | Polymer | Pack of 10

Save $239.82 Save $239.82
$599.55
$599.55 - $599.55
$599.55
$359.73
$359.73 - $359.73
$359.73

by Parker Hannifin
Mini Series:7915 - 3/2, with vent, with male thread and push-to-connect port NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 7915 08 14 Parker | 10 |
Series: Mini Series
Shape (Orientation): Straight
Material(s): Polymer, Nickel-Plated Brass, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight, Mini/Micro Size
Product Features:
      Optimum Solution
  • Full Flow
  • Marked with the pneumatic symbol for identification of its function
  • Lightweight and compact
  • Extremely compact, easy-to-operate lever
  • Lever with screwdriver slot to facilitate operation
      • Proven Technology - Three in-line versions:
  • Excellent static and dynamic sealing
  • High-strength polyamide
  • Automatic seal wear compensation for long-term reliability
  • 100% leak-tested in production
  • Date coding to guarantee quality and traceability
Applications:
  • Robotics
  • Vacuum
  • Semi-Conductors
  • Packaging
  • Textile
  • Pneumatics
Pressure Range
  • 145 psi (10 bar)
Temperature Range
  • -4° to 176° F (-20° to 80° C)
Compatible Fluids
  • Compressed air only
Part Number ØD NPT (C) F H J K L L1 N Oz
7915 04 11 5/32" 1/8" 13 mm 1.46" .55" .87" 2.44" 1.46" .64" 1.76 Oz
7915 08 14 5/16" 1/4" 14 mm 1.46" .59" 1.18" 2.40" 1.61" .64" 2.40 Oz
7915 56 11 1/4" 1/8" 13 mm 1.46" .55" .87" 2.44" 1.46" .64" 1.90 Oz
7915 56 14 1/4" 1/4" 14 mm 1.46" .59" .87" 2.44" 1.38" .64" 2.40 Oz
7915 60 14 3/8" 1/4" 16 mm 1.69" .69" 1.18" 2.40" 1.65" .87" 3.60 Oz
7915 60 18 3/8" 3/8" 18 mm 1.69" .77" 1.18" 2.91" 1.65" .87" 4.94 Oz
