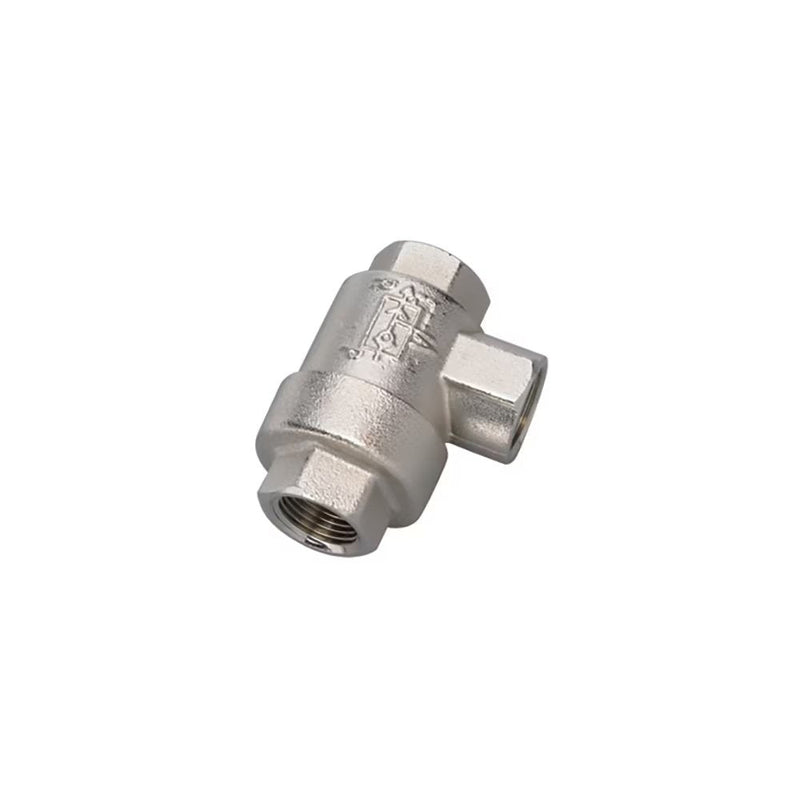

7970 13 13 by Parker | Legris Quick Exhaust Valve | 1/4" Female BSPP Thread | 19 mm Hex | 53 mm Length | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $182.85

$457.12

$457.12 - $457.12

$457.12

$274.27

$274.27 - $274.27

$274.27

by Parker Hannifin
Metal Quick Exhaust Valves:7970 Elbow Quick Exhaust Valve, Female BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7970 13 13 Parker \| 10 \|
Series:	7970 Series
Shape (Orientation):	90° Elbow
Material(s):	Polyurethane Elastomer, Nickel-Plated Brass
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 7970: 0.7 to 10 bar 7971 and 7899: 2 to 10 bar Working Temperature: 7970: -20°C to +70°C 7971: -10°C to +70°C 7899: Threads G1/8 and G1/4: -10°C to +120°C Threads G1/8 and G1/4: -20°C to +80°C
Advantages:	Cycle time reduction: increased return speed Exhaust silencer integrated and 360° orientation available on some versions
Regulations:	RoHS REACH PED
Component Materials:	Integrated silencer: Stainless Steel (Model 7971) Lip Seals: 7970-7971: Polyurethane elastomer 7899: - G1/8 and G1/4 FKM - G3/8 and G1, Polyurethane Body: Model 7970: Nickel-Plated Brass Model 7971: Anodized Aluminum Model 7899: Stainless Steel


Part Number	C	E	F	H	H1	L	Kg
7970 19 19	M5x0.8	5 mm	10 mm	24.8 mm	15.6 mm	4 mm	.029 Kg
7970 10 10	1/8"	7.5 mm	14 mm	42 mm	28 mm	8 mm	.084 Kg
7970 13 13	1/4"	11 mm	19 mm	53 mm	34.5 mm	11 mm	.150 Kg
7970 17 17	3/8"	12 mm	21 mm	58 mm	36 mm	12 mm	.153 Kg
7970 21 21	1/2"	14 mm	26 mm	71 mm	44 mm	14 mm	.312 Kg
7970 27 27	3/4"	16 mm	32 mm	86 mm	52 mm	18 mm	.449 Kg
7970 34 34	1"	19 mm	38 mm	94 mm	56 mm	19 mm	.528 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
