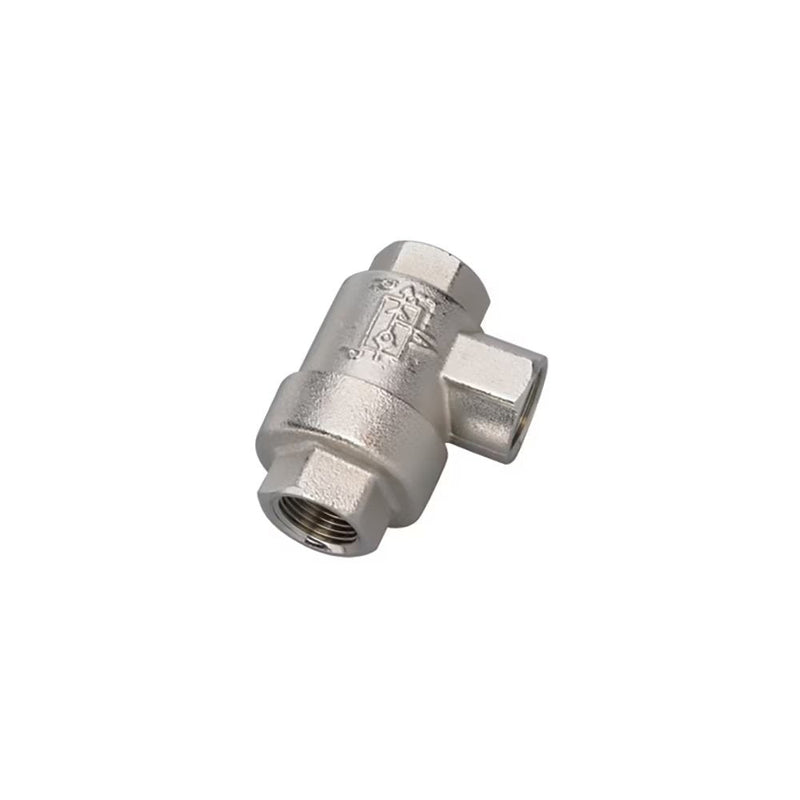

7970 27 27 by Parker | Legris Quick Exhaust Valve | 3/4" Female BSPP Thread | 32 mm Hex | 86 mm Length | 90° Elbow | Nickel-Plated Brass

7970 27 27 by Parker | Legris Quick Exhaust Valve | 3/4" Female BSPP Thread | 32 mm Hex | 86 mm Length | 90° Elbow | Nickel-Plated Brass

Save $15.91 Save $15.91
$103.90
$103.90 - $103.90
$103.90
$87.99
$87.99 - $87.99
$87.99

by Parker Hannifin
Metal Quick Exhaust Valves:7970 Elbow Quick Exhaust Valve, Female BSPP and Metric Thread
Specifications for Variant SKU: 7970 27 27 Parker
Series: 7970 Series
Shape (Orientation): 90° Elbow
Material(s): Polyurethane Elastomer, Nickel-Plated Brass
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure:
    7970: 0.7 to 10 bar
    7971 and 7899: 2 to 10 bar
  • Working Temperature:
    7970: -20°C to +70°C
    7971: -10°C to +70°C
    7899:
    Threads G1/8 and G1/4: -10°C to +120°C
    Threads G1/8 and G1/4: -20°C to +80°C
Advantages:
  • Cycle time reduction: increased return speed
  • Exhaust silencer integrated and 360° orientation available on some versions
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Integrated silencer: Stainless Steel (Model 7971)
  • Lip Seals:
    7970-7971: Polyurethane elastomer
    7899: - G1/8 and G1/4 FKM
    - G3/8 and G1, Polyurethane
  • Body:
    Model 7970: Nickel-Plated Brass
    Model 7971: Anodized Aluminum
    Model 7899: Stainless Steel
Part Number C E F H H1 L Kg
7970 19 19 M5x0.8 5 mm 10 mm 24.8 mm 15.6 mm 4 mm .029 Kg
7970 10 10 1/8" 7.5 mm 14 mm 42 mm 28 mm 8 mm .084 Kg
7970 13 13 1/4" 11 mm 19 mm 53 mm 34.5 mm 11 mm .150 Kg
7970 17 17 3/8" 12 mm 21 mm 58 mm 36 mm 12 mm .153 Kg
7970 21 21 1/2" 14 mm 26 mm 71 mm 44 mm 14 mm .312 Kg
7970 27 27 3/4" 16 mm 32 mm 86 mm 52 mm 18 mm .449 Kg
7970 34 34 1" 19 mm 38 mm 94 mm 56 mm 19 mm .528 Kg
