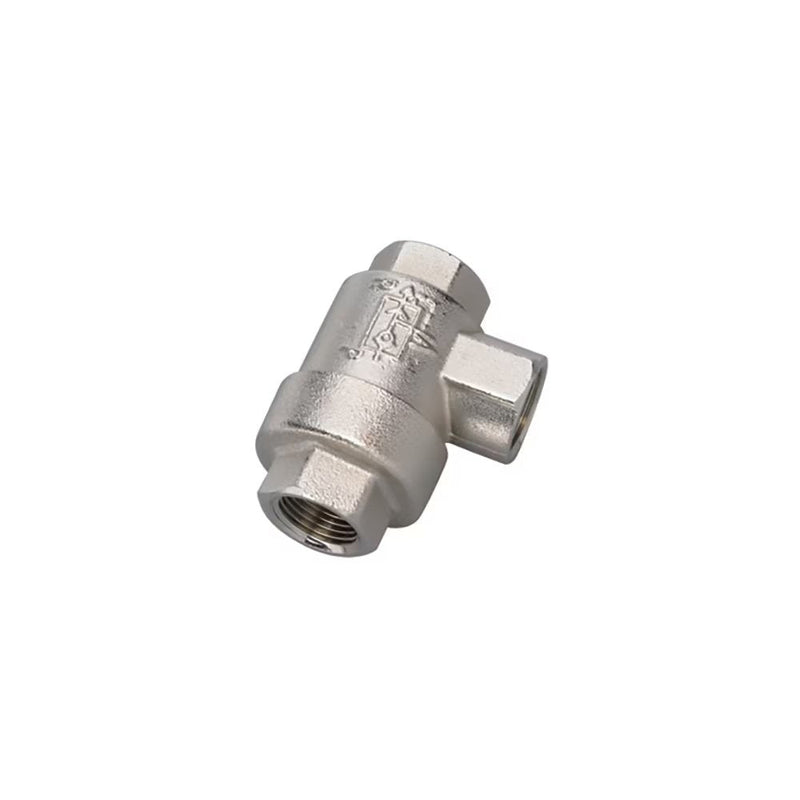

7970 21 21 by Parker | Legris Quick Exhaust Valve | 1/2" Female BSPP Thread | 26 mm Hex | 71 mm Length | 90° Elbow | Nickel-Plated Brass | Pack of 5

Save $158.05

$395.12

$395.12 - $395.12

$395.12

$237.07

$237.07 - $237.07

$237.07

by Parker Hannifin
Metal Quick Exhaust Valves:7970 Elbow Quick Exhaust Valve, Female BSPP and Metric Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 7970 21 21 Parker \| 5 \|
Series:	7970 Series
Shape (Orientation):	90° Elbow
Material(s):	Polyurethane Elastomer, Nickel-Plated Brass
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 7970: 0.7 to 10 bar 7971 and 7899: 2 to 10 bar Working Temperature: 7970: -20°C to +70°C 7971: -10°C to +70°C 7899: Threads G1/8 and G1/4: -10°C to +120°C Threads G1/8 and G1/4: -20°C to +80°C
Advantages:	Cycle time reduction: increased return speed Exhaust silencer integrated and 360° orientation available on some versions
Regulations:	RoHS REACH PED
Component Materials:	Integrated silencer: Stainless Steel (Model 7971) Lip Seals: 7970-7971: Polyurethane elastomer 7899: - G1/8 and G1/4 FKM - G3/8 and G1, Polyurethane Body: Model 7970: Nickel-Plated Brass Model 7971: Anodized Aluminum Model 7899: Stainless Steel


Part Number	C	E	F	H	H1	L	Kg
7970 19 19	M5x0.8	5 mm	10 mm	24.8 mm	15.6 mm	4 mm	.029 Kg
7970 10 10	1/8"	7.5 mm	14 mm	42 mm	28 mm	8 mm	.084 Kg
7970 13 13	1/4"	11 mm	19 mm	53 mm	34.5 mm	11 mm	.150 Kg
7970 17 17	3/8"	12 mm	21 mm	58 mm	36 mm	12 mm	.153 Kg
7970 21 21	1/2"	14 mm	26 mm	71 mm	44 mm	14 mm	.312 Kg
7970 27 27	3/4"	16 mm	32 mm	86 mm	52 mm	18 mm	.449 Kg
7970 34 34	1"	19 mm	38 mm	94 mm	56 mm	19 mm	.528 Kg
