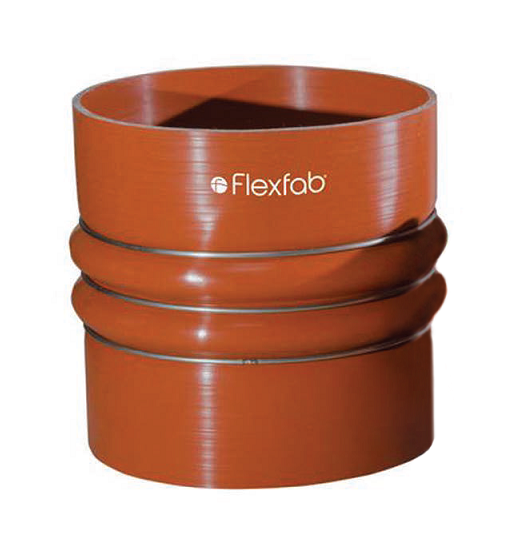

7970 FlexFab 6-ply Large ID Charge Air Connector (CAC) - 8.00" ID - 8.34" OD - Orange - 8" Length

7970 by FlexFab | 6-ply Large ID Charge Air Connector (CAC) | 8.00" ID | 8.34" OD | Orange | 8" Overall Length

Save $62.98

$220.43

$220.43 - $220.43

$220.43

$157.45

$157.45 - $157.45

$157.45

Flexfab Industrial Hose - Large ID Charge Air Connectors (CAC)

Specifications for Variant SKU: 7970 Flexfab
Shape (Orientation):	Straight
Material(s):	Silicone Coated Fabric, Stainless Steel

Overview:
Can be used on both hot side or cold side of the Charge-Air Cooler system. Note: Flexfab recommends double clamping at each end for proper installation.
Construction:
6-Ply Silicone Coated Meta-Aramid Fabric with Stainless Steel Pressure Retention Rings
Specifications:
Temperature range is -65°F (-54°C) to +500°F (+260°C) Wall thickness is .138"/.198"
Applications:
Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold

Part Number	Inside Diameter	Outside Diameter	Overall Length	Convolutes (Humps)	Stainless Steel Rings	Maximum OperatingPressure - PSI	WeightLBS	Clamp
7968	6.00"	6.34"	8.00"	2	3	50 PSI	1.42 lbs	FLX2584-0662
7969	7.00"	7.34"	8.00"	2	3	40 PSI	1.68 lbs	FLX2584-0762
7970	8.00"	8.34"	8.00"	2	3	40 PSI	1.92 lbs	FLX2584-0862

*Specifications for reference only. Specific test data available on request.

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
