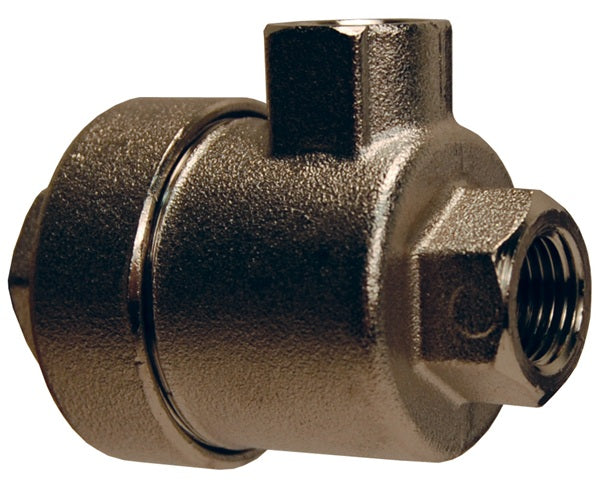

79822222 by Dixon Valve | Legris Quick Exhaust Valve | 1/2" Female NPT | Nylon/Brass

79822222 by Dixon Valve | Legris Quick Exhaust Valve | 1/2" Female NPT | Nylon/Brass

Save $4.09 Save $4.09
$43.82
$43.82 - $43.82
$43.82
$39.73
$39.73 - $39.73
$39.73

Dixon Valve & Coupling
Legris Quick Exhaust Valve

Can be used with all pneumatic equipment, ideal for applications in restrictive environments.

Increases system efficiency and the speed of a cylinder by purging cylinder air at the cylinder port rather than the control valve.
Specifications for Variant SKU: 79822222 Dixon
Brand: Legris
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): Nickel-Plated Brass, Polyurethane
Seal Material(s): Nylon
Materials:
  • Body: nickel-plated brass
  • Piston: polyurethane
  • Seals: nylon
Specifications:
  • Pressure range: 10 PSI to 150 PSI
  • Temperature range: 0°F to 160°F (-17°C to 71°C)
Part Number NPT Thread
79821111 1/8"
79821414 1/4"
79821818 3/8"
79822222 1/2"
