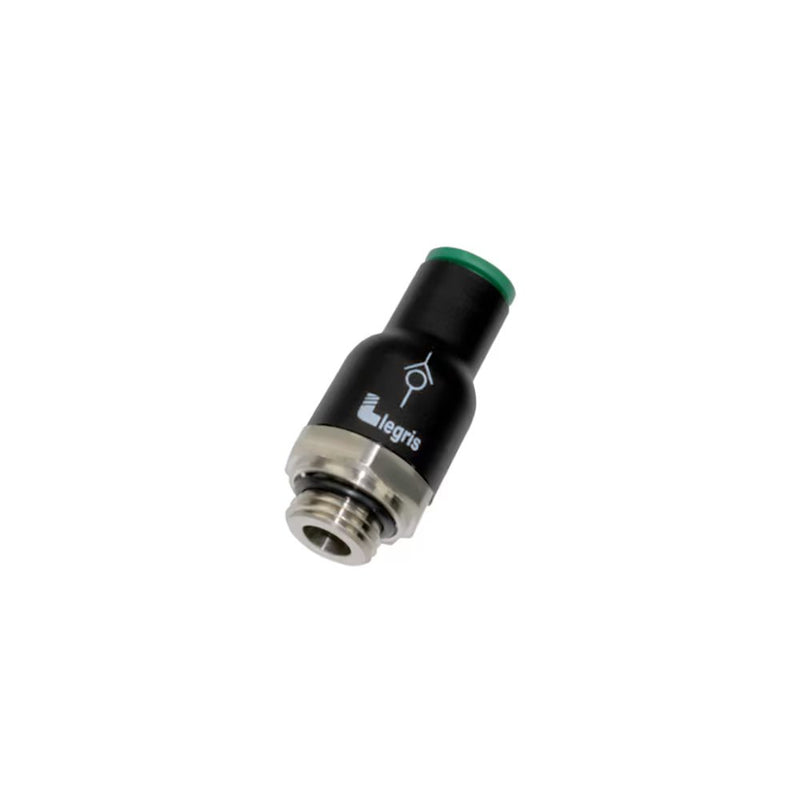

7984 04 20 by Parker | Legris In-Line Check Valve - Meter In | 5/32" Push-to-Connect x 10-32 Male UNF Thread | 9 mm Hex | Straight | Glass-Reinforced Nylon

7984 04 20 by Parker | Legris In-Line Check Valve - Meter In | 5/32" Push-to-Connect x 10-32 Male UNF Thread | 9 mm Hex | Straight | Glass-Reinforced Nylon | Pack of 10

Save $153.78 Save $153.78
$384.45
$384.45 - $384.45
$384.45
$230.67
$230.67 - $230.67
$230.67

by Parker Hannifin
In-Line Check Valves:7984/7985 - male check valve fractional inch tube to NPT or UNF

Package Quantity: 10 Units

Specifications for Variant SKU: 7984 04 20 Parker | 10 |
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon, Acetal, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Glass-reinforced nylon 6.6/nickel-plated brass body
  • VC – Acetal body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • Nitrile O-ring
  • EPDM O-ring (VC)
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Pneumatics
  • Semi-Conductor
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
  • Pneumatic Systems
  • Vacuum
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 32° to 158° F (0° to 70° C)
    VC – 34° to 150° F (1° to 65° C)
Compatible Fluids
  • 7 psi (0.48 bar)
    VC – 1/3 psi (0.02 bar)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD NPT / UNF (C) F H Oz
7984 04 20 5/32" 10-32 9 mm 1.26" .28 Oz
7985 04 11 5/32" 1/8" 16 mm 1.12" .28 Oz
7985 56 11 1/4" 1/8" 19 mm 1.42" .51 Oz
7985 56 14 1/4" 1/4" 19 mm 1.42" .51 Oz
7985 60 14 3/8" 1/4" 23 mm 1.65" .63 Oz
7985 60 18 3/8" 3/8" 23 mm 1.65" .63 Oz
