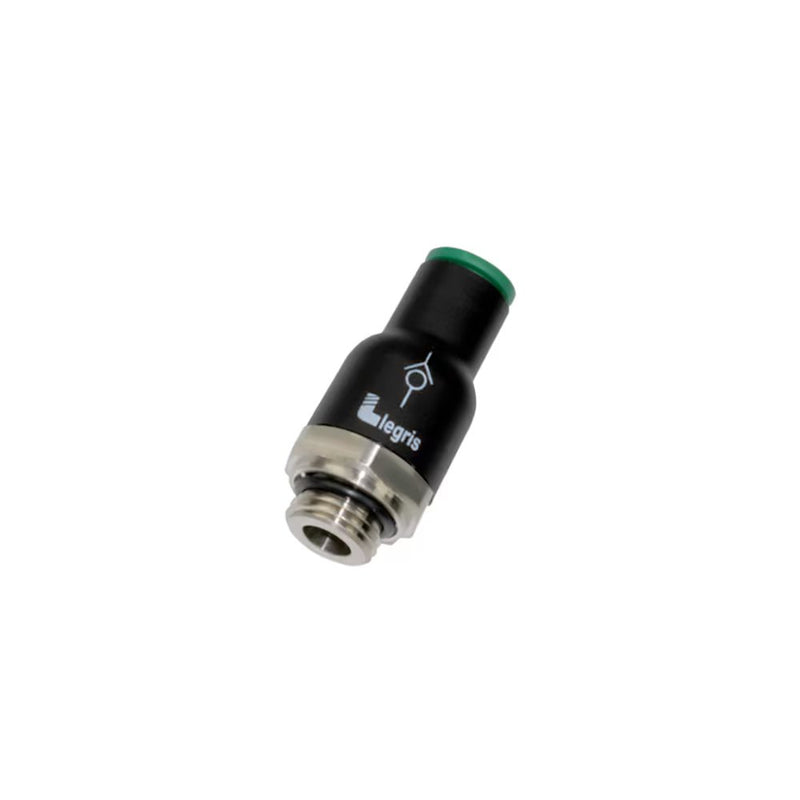

7984 08 10 by Parker | Legris In-Line Non-Return Valve | 8 mm Tube Size x 1/8" Male BSPP Thread | 19 mm Hex | 41 mm Length | Straight | Polymer | Pack of 10

7984 08 10 by Parker | Legris In-Line Non-Return Valve | 8 mm Tube Size x 1/8" Male BSPP Thread | 19 mm Hex | 41 mm Length | Straight | Polymer | Pack of 10

Save $154.85 Save $154.85
$387.12
$387.12 - $387.12
$387.12
$232.27
$232.27 - $232.27
$232.27

by Parker Hannifin
Non-Return Valves:7984 In-Line Non-Return Valve, Supply, Male BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7984 08 10 Parker | 10 |
Series: 7984 Series
Shape (Orientation): Straight
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: 0°C to +70°C
  • Cracking Pressure: 0.3 bar
Advantages:
  • Available in threaded or push-in version
  • Proven endurance according to the requirements of the DI 2006/42CE
      • Safe Installation:
  • Symbol showing the operating direction of flow
  • Color Code: Green for supply version, red for exhaust version
Regulations:
  • RoHS
  • REACH
  • PED
  • B10d" >40 millions of cycle
Component Materials:
  • Body: Technical polymer
  • Body:Nickel-Plated Brass
  • Seal:NBR
Part Number ØD C E F H Kg
7984 04 19 4 mm M5x0.8 3 mm 9 mm 32 mm .008 Kg
7984 04 10 4 mm 1/8" 5 mm 16 mm 28.5 mm .015 Kg
7984 06 10 6 mm 1/8" 5 mm 16 mm 30.5 mm .015 Kg
7984 06 13 6 mm 1/4" 5.5 mm 16 mm 30.5 mm .015 Kg
7984 08 10 8 mm 1/8" 5 mm 19 mm 36 mm .021 Kg
7984 08 13 8 mm 1/4" 5.5 mm 19 mm 36 mm .023 Kg
