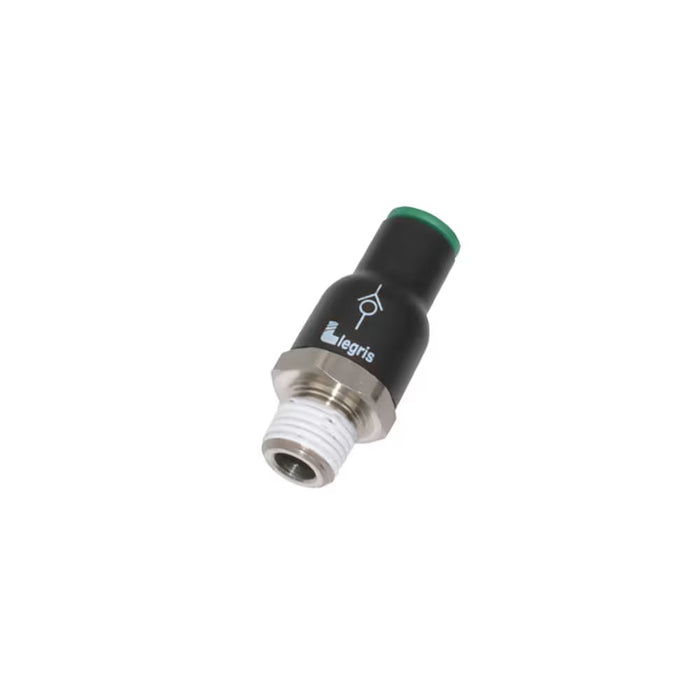

7985 06 10 by Parker | Legris In-Line Non-Return Valve | 6 mm Tube Size x 1/8" Male BSPT Thread | 16 mm Hex | Straight | Polymer | Pack of 10

7985 06 10 by Parker | Legris In-Line Non-Return Valve | 6 mm Tube Size x 1/8" Male BSPT Thread | 16 mm Hex | Straight | Polymer | Pack of 10

Save $28.61 Save $28.61
$233.81
$233.81 - $233.81
$233.81
$205.20
$205.20 - $205.20
$205.20

by Parker Hannifin
Non-Return Valves:7985 In-Line Non-Return Valve, Supply, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7985 06 10 Parker | 10 |
Series: 7985 Series
Shape (Orientation): Straight
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: 0°C to +70°C
  • Cracking Pressure: 0.3 bar
Advantages:
  • Available in threaded or push-in version
  • Proven endurance according to the requirements of the DI 2006/42CE
      • Safe Installation:
  • Symbol showing the operating direction of flow
  • Color Code: Green for supply version, red for exhaust version
Regulations:
  • RoHS
  • REACH
  • PED
  • B10d" >40 millions of cycle
Component Materials:
  • Body: Technical polymer
  • Body:Nickel-Plated Brass
  • Seal:NBR
Part Number ØD C F H Kg
7985 04 10 4 mm 1/8" 16 mm 28.5 mm .016 Kg
7985 06 10 6 mm 1/8" 16 mm 30.5 mm .016 Kg
7985 06 13 6 mm 1/4" 16 mm 30.5 mm .021 Kg
7985 08 10 8 mm 1/8" 19 mm 36 mm .022 Kg
7985 08 13 8 mm 1/4" 19 mm 36 mm .020 Kg

Pre-coated thread

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
