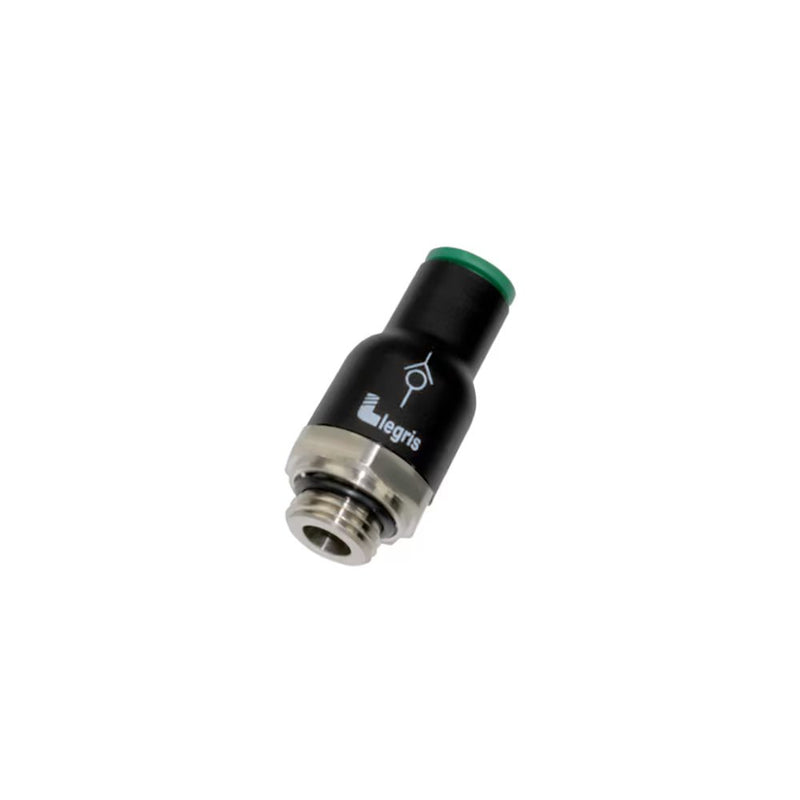

7995 56 11 by Parker | Legris In-Line Check Valve - Meter In | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 19 mm Hex | Straight | Glass-Reinforced Nylon

7995 56 11 by Parker | Legris In-Line Check Valve - Meter In | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 19 mm Hex | Straight | Glass-Reinforced Nylon | Pack of 10

$233.12 - $233.12
$233.12
$259.33
$259.33 - $259.33
$259.33

by Parker Hannifin
In-Line Check Valves:7994/7995 - male check valve fractional inch tube to NPT or UNF

Package Quantity: 10 Units

Specifications for Variant SKU: 7995 56 11 Parker | 10 |
Series: 7995 Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon, Acetal, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Glass-reinforced nylon 6.6/nickel-plated brass body
  • VC – Acetal body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • Nitrile O-ring
  • EPDM O-ring (VC)
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Pneumatics
  • Semi-Conductor
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
  • Pneumatic Systems
  • Vacuum
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 32° to 158° F (0° to 70° C)
    VC – 34° to 150° F (1° to 65° C)
Compatible Fluids
  • 7 psi (0.48 bar)
    VC – 1/3 psi (0.02 bar)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD NPT / UNF (C) F H Oz
7984 04 20 5/32" 10-32 9 mm 1.26" .28 Oz
7985 04 11 5/32" 1/8" 16 mm 1.12" .28 Oz
7985 56 11 1/4" 1/8" 19 mm 1.42" .51 Oz
7985 56 14 1/4" 1/4" 19 mm 1.42" .51 Oz
7985 60 14 3/8" 1/4" 23 mm 1.65" .63 Oz
7985 60 18 3/8" 3/8" 23 mm 1.65" .63 Oz
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
