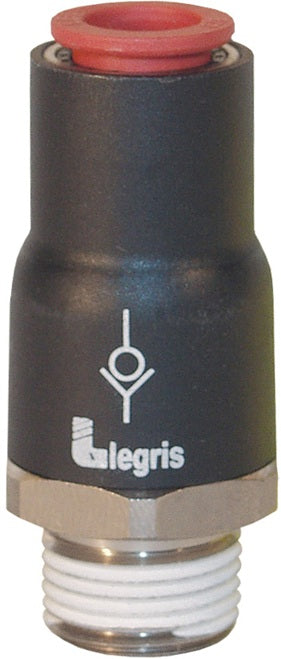

79955614 by Dixon Valve | Legris Push-to Connect In-Line Check Valve | 1/4" Tube OD x 1/4" Male NPT | Nylon

79955614 by Dixon Valve | Legris Push-to Connect In-Line Check Valve | 1/4" Tube OD x 1/4" Male NPT | Nylon

Save $3.32 Save $3.32
$35.52
$35.52 - $35.52
$35.52
$32.20
$32.20 - $32.20
$32.20

Dixon Valve & Coupling
Legris In-Line Check Valve

Suitable as a safety item in compressed air circuits.

Allows air to pass in one direction while blocking flow in the other direction.
Specifications for Variant SKU: 79955614 Dixon
Brand: Legris
Shape (Orientation): Straight
Material(s): Nylon, Nickel-Plated Brass
Features:
  • Compact, lightweight design meter out check valves.
  • Arrow on body of the fitting indicates direction of flow, a pressure of more than 7 PSI will overcome spring pressure keeping the valve closed, thus allowing the passage of air.
  • Pre-applied thread sealant on tapered threads.
Materials:
  • Body: nylon with nickel plated brass base
  • Seal: Nitrile
Specifications:
  • Pressure range: 15 PSI to 145 PSI at ambient temperature 70°F (21°C)
  • Temperature Range: 34°F to 150°F (1.1°C to 6.5°C)
Part Number Tube O.D. Threads
79940420 5/32" 10-32 Male UNF Straight Thread
(Supplied with Gasket)
79950411 5/32" 1/8" Male NPT
79955611 1/4" 1/8" Male NPT
79955614 1/4" 1/4" Male NPT
79956014 3/8" 1/4" Male NPT
79956018 3/8" 3/8" Male NPT
