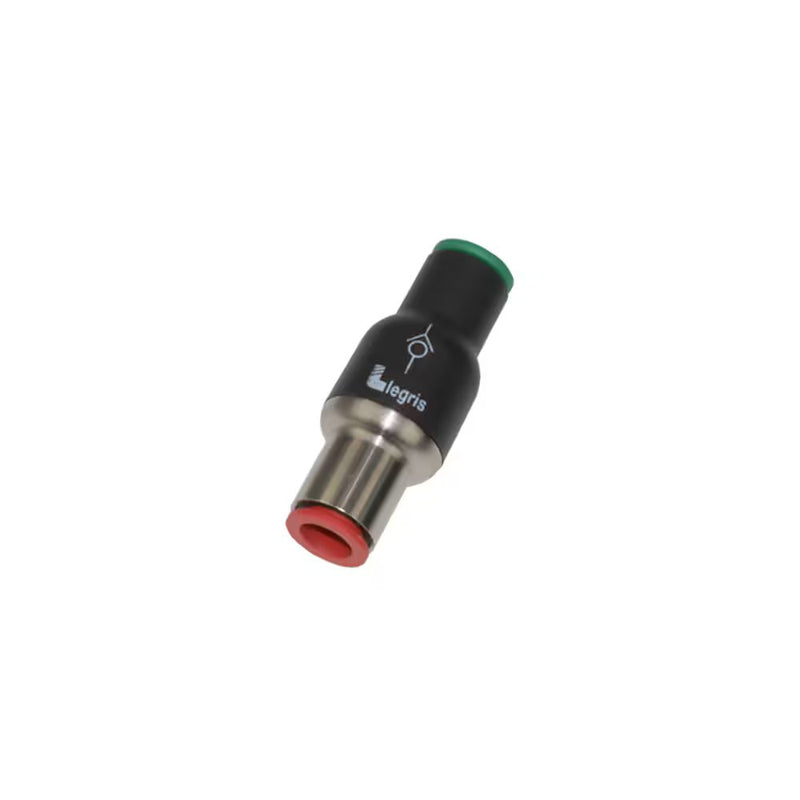

7996 06 00 by Parker | Legris In-Line Equal Non-Return Valve | 6 mm Tube Size | 41 mm Length | Straight | Polymer

7996 06 00 by Parker | Legris In-Line Equal Non-Return Valve | 6 mm Tube Size | 41 mm Length | Straight | Polymer | Pack of 10

Save $28.26 Save $28.26
$234.79
$234.79 - $234.79
$234.79
$206.53
$206.53 - $206.53
$206.53

by Parker Hannifin
Non-Return Valves:7996 In-Line Equal Non-Return Valve

Package Quantity: 10 Units

Specifications for Variant SKU: 7996 06 00 Parker | 10 |
Series: 7996 Series
Shape (Orientation): Straight
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: 0°C to +70°C
  • Cracking Pressure: 0.3 bar
Advantages:
  • Available in threaded or push-in version
  • Proven endurance according to the requirements of the DI 2006/42CE
      • Safe Installation:
  • Symbol showing the operating direction of flow
  • Color Code: Green for supply version, red for exhaust version
Regulations:
  • RoHS
  • REACH
  • PED
  • B10d" >40 millions of cycle
Component Materials:
  • Body: Technical polymer
  • Body:Nickel-Plated Brass
  • Seal:NBR
Part Number ØD G L Kg
7996 04 00 4 mm 16 mm 38.5 mm .008 Kg
7996 06 00 6 mm 16 mm 41 mm .013 Kg
7996 08 00 8 mm 19 mm 51.5 mm .017 Kg
7996 10 00 10 mm 23 mm 63.5 mm .070 Kg
7996 12 00 12 mm 23 mm 66.5 mm .050 Kg
