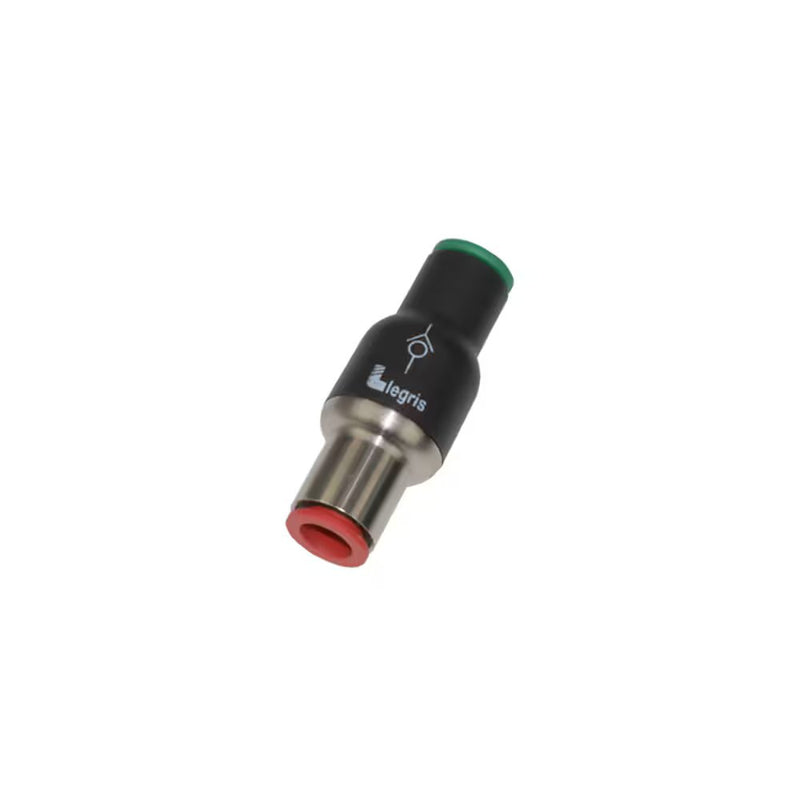

7996 08 00 by Parker | Legris In-Line Equal Non-Return Valve | 8 mm Tube Size | 51.5 mm Length | Straight | Polymer

7996 08 00 by Parker | Legris In-Line Equal Non-Return Valve | 8 mm Tube Size | 51.5 mm Length | Straight | Polymer | Pack of 10

Save $35.85 Save $35.85
$308.65
$308.65 - $308.65
$308.65
$272.80
$272.80 - $272.80
$272.80

by Parker Hannifin
Non-Return Valves:7996 In-Line Equal Non-Return Valve

Package Quantity: 10 Units

Specifications for Variant SKU: 7996 08 00 Parker | 10 |
Series: 7996 Series
Shape (Orientation): Straight
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: 0°C to +70°C
  • Cracking Pressure: 0.3 bar
Advantages:
  • Available in threaded or push-in version
  • Proven endurance according to the requirements of the DI 2006/42CE
      • Safe Installation:
  • Symbol showing the operating direction of flow
  • Color Code: Green for supply version, red for exhaust version
Regulations:
  • RoHS
  • REACH
  • PED
  • B10d" >40 millions of cycle
Component Materials:
  • Body: Technical polymer
  • Body:Nickel-Plated Brass
  • Seal:NBR
Part Number ØD G L Kg
7996 04 00 4 mm 16 mm 38.5 mm .008 Kg
7996 06 00 6 mm 16 mm 41 mm .013 Kg
7996 08 00 8 mm 19 mm 51.5 mm .017 Kg
7996 10 00 10 mm 23 mm 63.5 mm .070 Kg
7996 12 00 12 mm 23 mm 66.5 mm .050 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
