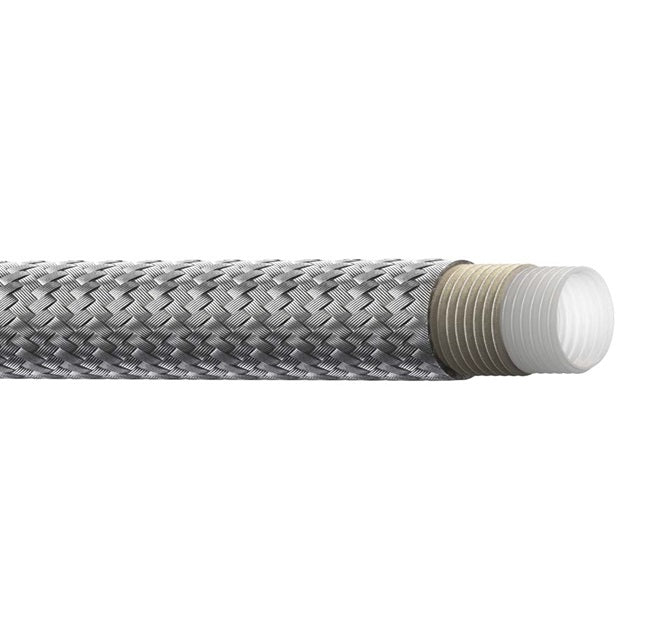

8008 Everflex by Danfoss | 8000 Series | Non-Conductive Convoluted Teflon™ Hose | 1/2" Hose ID | 304 Stainless Steel Braid

8008 Everflex by Danfoss | 8000 Series | Non-Conductive Convoluted Teflon™ Hose | 1/2" Hose ID | 304 Stainless Steel Braid

$27.91 - $27.91
$27.91
$27.91 - $27.91
$27.91

Everflex by Danfoss
8000/8500 Series | Convoluted Teflon Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 8008 Danfoss
Brand: Everflex
Series: 8000 Series Series
Hose Color(s): Metallic
Internal Diameter: 0.50in
Outer Diameter: 0.81in
Tubing Construction: Smooth Bore Non-Dissipating PTFE
Cover Construction: 304 Stainless Steel Braid
Hose Properties:
Applications: Automotive, Platen presses, Pharmaceutical, Bus and truck, Reverse osmosis, Hydraulics, Chemical processing, Steam, air, water, Tire manufacturing, Electronics Steel mills, Food processing, Tank truck transfer, 8500 Series is for applications where flow induced electrostatic charges can occur.
 SAE Ratings: N/A
Other Ratings: N/A Tube: Convoluted Teflon Tube
Reinforcement: 304 Stainless Steel Wire Braid Cover: 304 Stainless Steel Wire Braid
Operating Parameters: -65°F to +400°F (-54°C to +204°C)
Non-Conductive
Part Number 		Conductive
Part Number 		Hose Size Nominal
ID		 Max.
Nominal OD		 Hose ID Max.
Operating
Pressure		 Min.
Burst
Pressure		 Min.
Bend
Radius		 Weight Vacuum
Service
mm in mm in bar psi bar psi mm in kg/m lbs/ft in. Hg
8008 8508 -8 14,5mm 0.57" 20,6mm 0.81" 1/2" 103 bar 1500 psi 413 bar 6000 psi 38,1mm 1.5" 0,10 kg/m 0.23 lbs/ft 28 In/Hg
8012 8512 -12 21,1mm 0.83" 27,9mm 1.10" 3/4" 86 bar 1250 psi 345 bar 5000 psi 63,5mm 2.5" 0,14 kg/m 0.31 lbs/ft 28 In/Hg
8016 8516 -16 26,9mm 1.06" 34,0mm 1.34" 1" 62 bar 900 psi 248 bar 3600 psi 76,2mm 3.00" 0,19 kg/m 0.42 lbs/ft 20 In/Hg
8020 8520 -20 33,3mm 1.31" 40,6mm 1.60" 1-1/4" 62 bar 900 psi 248 bar 3600 psi 88,9mm 3.5" 0,24 kg/m 0.52 lbs/ft 12 In/Hg
8024 8524 -24 40,1mm 1.58" 46,5mm 1.83" 1-1/2" 52 bar 750 psi 206 bar 3000 psi 114,3mm 4.5" 0,27 kg/m 0.59 lbs/ft 10 In/Hg
8032 8532 -32 52,3mm 2.06" 60,5mm 2.38" 2" 35 bar 500 psi 138 bar 2000 psi 152,4mm 6.0" 0,39 kg/m 0.86 lbs/ft 5 In/Hg

Warning: These hoses can be used to convey hazardous chemicals, steam, hot liquids or other dangerous materials which can cause death, serious bodily injury including burns, pressure wounds or chemical exposure if released accidentally. They should, therefore, only be handled or worked on by personnel properly trained in the safe handling of the materials or chemicals conveyed in the hoses.

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
