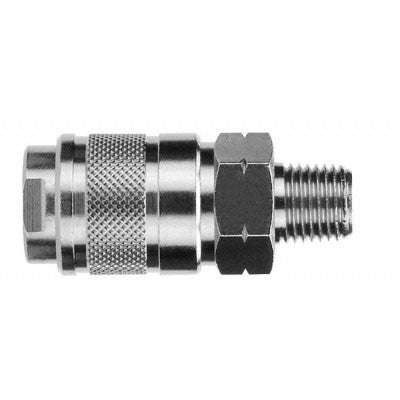

80121-08 AIGNEP | QC Series | 1/4" Basic Industrial Socket x 1/2" Male NPTF
80121-08 by AIGNEP | QC Series | 1/4" Basic Industrial Socket x 1/2" Male NPTF
80121-08 AIGNEP | QC Series | 1/4" Basic Industrial Socket x 1/2" Male NPTF

80121-08 by AIGNEP | QC Series | 1/4" Basic Industrial Socket x 1/2" Male NPTF

Save $6.46 Save $6.46
$14.55
$14.55 - $14.55
$14.55
$8.09
$8.09 - $8.09
$8.09
Specifications for Variant SKU: 80121-08 AIGNEP
Series: QC Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female Industrial Pneumatic QD Interchange, 1/2in Male NPTF
Material(s): Nickel-Plated Brass

1/4” Industrial Male Socket

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Product Number Seal Thread Type A B (IN) B CH C D
80121-04 NBR 70 NPTF 1/4" 0.512" 13 mm 21 mm 56.5 mm 24 mm
80121-06 NBR 70 NPTF 3/8" 0.512" 13 mm 21 mm 56.5 mm 24 mm
80121-08 NBR 70 NPTF 1/2" 0.669" 17 mm 24 mm 61 mm 24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
