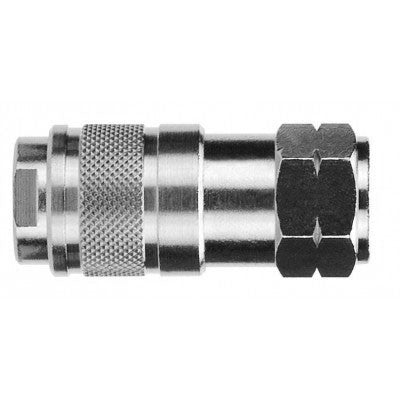

80122-04 AIGNEP | QC Series | 1/4" Basic Industrial Socket x 1/4" Female NPTF
80122-04 by AIGNEP | QC Series | 1/4" Basic Industrial Socket x 1/4" Female NPTF
80122-04 AIGNEP | QC Series | 1/4" Basic Industrial Socket x 1/4" Female NPTF

80122-04 by AIGNEP | QC Series | 1/4" Basic Industrial Socket x 1/4" Female NPTF

Save $6.40 Save $6.40
$14.35
$14.35 - $14.35
$14.35
$7.95
$7.95 - $7.95
$7.95
Specifications for Variant SKU: 80122-04 AIGNEP
Series: QC Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female Industrial Pneumatic QD Interchange, 1/4in Female NPTF
Material(s): Nickel-Plated Brass

Basic Industrial Socket - 1/4” Industrial Female

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

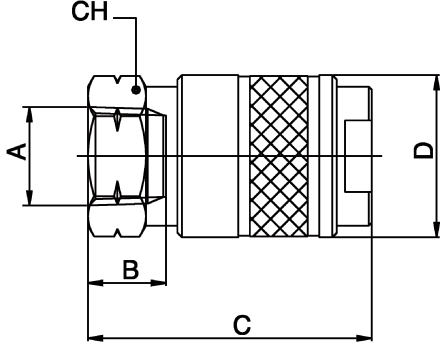

Product Number Seal Thread Type A B (IN) B CH C D
80122-04 NBR 70 NPTF 1/4" 0.531" 13.5 mm 21 mm 56 mm 24 mm
80122-06 NBR 70 NPTF 3/8" 0.531" 13.5 mm 21 mm 56 mm 24 mm
80122-08 NBR 70 NPTF 1/2" 0.689" 17.5 mm 24 mm 61.5 mm 24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
