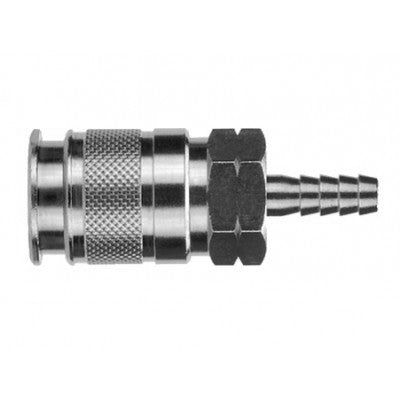

80193-04 AIGNEP | QC Series | 1/4" Multisocket Coupler x 1/4" Barb
80193-04 by AIGNEP | QC Series | 1/4" Multisocket Coupler x 1/4" Barb
80193-04 AIGNEP | QC Series | 1/4" Multisocket Coupler x 1/4" Barb

80193-04 by AIGNEP | QC Series | 1/4" Multisocket Coupler x 1/4" Barb

Save $6.39 Save $6.39
$14.71
$14.71 - $14.71
$14.71
$8.32
$8.32 - $8.32
$8.32
Specifications for Variant SKU: 80193-04 AIGNEP
Series: QC Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female Multi-Socket QD Interchange, 1/4in Hose Barb
Material(s): Nickel-Plated Brass

Multisocket Coupler - 1/4" Hose Barb

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass

Product Number A CH C D
80193-04 1/4" 21 mm 60.5 mm 24 mm
80193-06 3/8" 21 mm 61 mm 24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
