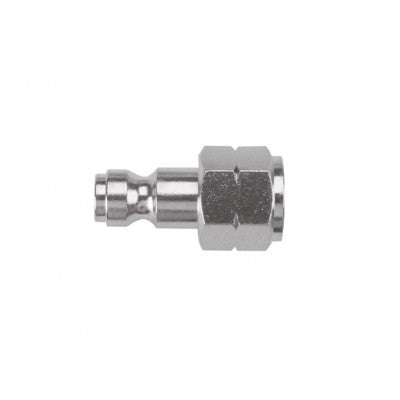

80292-04 AIGNEP | QC Series | 1/4" Tru Flate Plug x 1/4" Female NPTF
80292-04 by AIGNEP | QC Series | 1/4" Tru Flate Plug x 1/4" Female NPTF
80292-04 AIGNEP | QC Series | 1/4" Tru Flate Plug x 1/4" Female NPTF

80292-04 by AIGNEP | QC Series | 1/4" Tru Flate Plug x 1/4" Female NPTF

Save $0.01 Save $0.01
$1.29
$1.29 - $1.29
$1.29
$1.28
$1.28 - $1.28
$1.28
Specifications for Variant SKU: 80292-04 AIGNEP
Series: QC Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male Tru-Flate QD Interchange, 1/4in Female NPTF
Material(s): Nickel-Plated Brass

1/4" Tru-Flate Female (BRASS)

Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

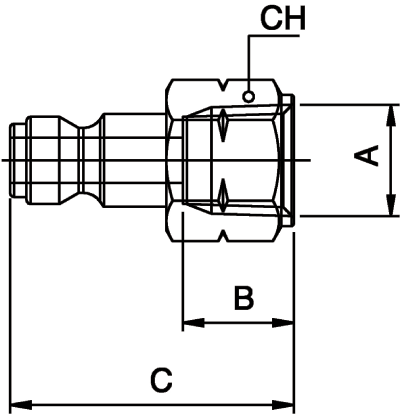

Product Number Seal Thread Type A B (IN) B CH C
80292-04 NBR 70 NPTF 1/4" 0.531" 13.5 mm 17 mm 34.5 mm
80292-06 NBR 70 NPTF 3/8" 0.531" 13.5 mm 17 mm 34.5 mm
80292-08 NBR 70 NPTF 1/2" 0.689" 17.5 mm 24 mm 38.5 mm
