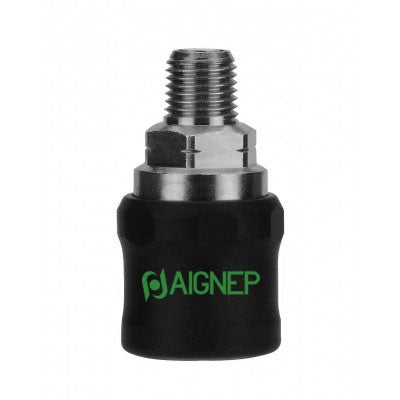

80621-06 AIGNEP | QC Series | 1/4" SC Industrial x 3/8" Male NPTF

80621-06 by AIGNEP | QC Series | 1/4" SC Industrial x 3/8" Male NPTF

Name: 80621-06 by AIGNEP | QC Series | 1/4" SC Industrial x 3/8" Male NPTF
Brand: AIGNEP
SKU: 80621-06 AIGNEP
Price: 17.23 USD
Availability: InStock

Save $8.55

$25.78

$25.78 - $25.78

$25.78

$17.23

$17.23 - $17.23

$17.23

Specifications for Variant SKU: 80621-06 AIGNEP
Series:	QC Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Male Safety Coupler - NPTF

Pressure Rating: Vacuum-217 PSI
Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

Seal	Thread Type	A	B (IN)	B	CH	C	D
80621-04	NBR 70	NPTF	1/4"	0.512"	13 mm	19 mm	55 mm	30.5 mm
80621-06	NBR 70	NPTF	3/8"	0.512"	13 mm	19 mm	55 mm	30.5 mm
80621-08	NBR 70	NPTF	1/2"	0.669"	17 mm	22 mm	59 mm	30.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
