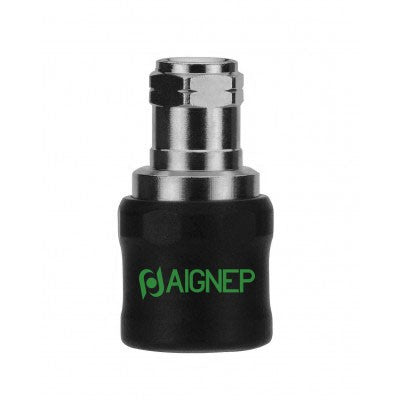

80622-04 AIGNEP | QC Series | 1/4" SC Industrial x 1/4" Female NPTF

80622-04 by AIGNEP | QC Series | 1/4" SC Industrial x 1/4" Female NPTF

Name: 80622-04 by AIGNEP | QC Series | 1/4" SC Industrial x 1/4" Female NPTF
Brand: AIGNEP
SKU: 80622-04 AIGNEP
Price: 13.39 USD
Availability: InStock

Save $0.13

$13.52

$13.52 - $13.52

$13.52

$13.39

$13.39 - $13.39

$13.39

Quantity

Specifications for Variant SKU: 80622-04 AIGNEP
Series:	QC Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Female Safety Coupler - NPTF

Pressure Rating: Vacuum-217 PSI
Temperature Range: 0-176° F
Media: Compressed Air
Body: Nickel Plated Brass
Thread Type: NPTF

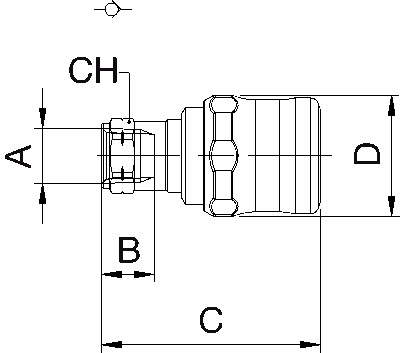

Seal	Thread Type	A	B (IN)	B	CH	C	D
80622-04	NBR 70	NPTF	1/4"	0.531"	13.5 mm	17 mm	55 mm	30.5 mm
80622-06	NBR 70	NPTF	3/8"	0.531"	13.5 mm	20 mm	54.5 mm	30.5 mm
80622-08	NBR 70	NPTF	1/2"	0.689"	17.5 mm	24 mm	59 mm	30.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
