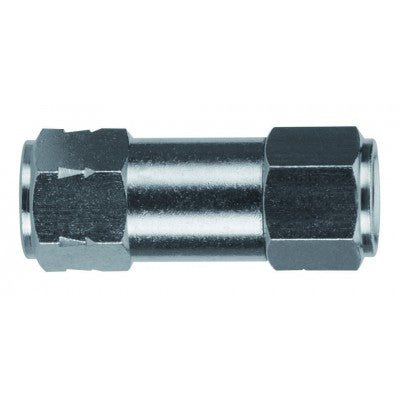

82662-04 AIGNEP | Functional (Flow Controls) Series | Check Valve | 1/4" NPTF Female
82662-04 by AIGNEP | Functional (Flow Controls) Series | Check Valve | 1/4" NPTF Female
82662-04 AIGNEP | Functional (Flow Controls) Series | Check Valve | 1/4" NPTF Female

82662-04 by AIGNEP | Functional (Flow Controls) Series | Check Valve | 1/4" NPTF Female

Save $4.21 Save $4.21
$10.52
$10.52 - $10.52
$10.52
$6.31
$6.31 - $6.31
$6.31
Specifications for Variant SKU: 82662-04 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Nickel-Plated Brass

Check Valve - Female

Pressure Rating: 3 - 120 psi
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass
Cracking Pressure: 4 PSI
Thread Type: NPTF

Product Number Thread Type A L Es
82662-02 NPTF 1/8" 36.5 mm 13 mm
82662-04 NPTF 1/4" 47 mm 17 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
