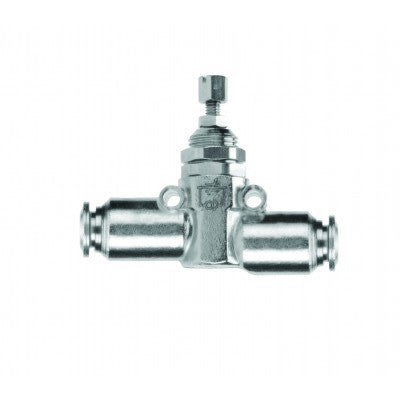

82830-06 AIGNEP | Functional (Flow Controls) Series | Inline Needle Valve (Bi-Directional) | 3/8" Tube

82830-06 by AIGNEP | Functional (Flow Controls) Series | Inline Needle Valve (Bi-Directional) | 3/8" Tube

Save $10.59 Save $10.59
$26.47
$26.47 - $26.47
$26.47
$15.88
$15.88 - $15.88
$15.88
Specifications for Variant SKU: 82830-06 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass

Inline Needle Valve - Tube x Tube (Bi-Directional)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass

Product Number Tube C H D F L CH G I
82830-04 1/4" 23.5 mm 40.5 - 46.5 mm 4 mm 15.5 mm 48 mm 13 mm 14 mm 17 mm
82830-06 3/8" 25.5 mm 49 - 55 mm 4.5 mm 20.5 mm 57.5 mm 18 mm 20.5 mm 20 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
