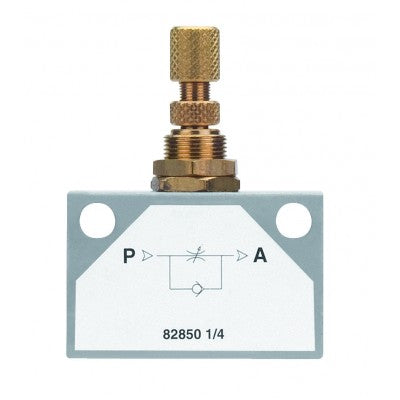

82850-06 AIGNEP | Functional (Flow Controls) Series | Inline Flow Control Valve | 3/8" Female NPTF

82850-06 by AIGNEP | Functional (Flow Controls) Series | Inline Flow Control Valve | 3/8" Female NPTF

Name: 82850-06 by AIGNEP | Functional (Flow Controls) Series | Inline Flow Control Valve | 3/8" Female NPTF
Brand: AIGNEP
SKU: 82850-06 AIGNEP
Price: 29.25 USD
Availability: InStock

Save $11.84

$41.09

$41.09 - $41.09

$41.09

$29.25

$29.25 - $29.25

$29.25

Specifications for Variant SKU: 82850-06 AIGNEP
Series:	Functional (Flow Controls) Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female NPTF, 3/8in Female NPTF, Some Ends Match
Material(s):	Anodized Aluminum

Inline Flow Control Female - NPTF

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Anodized Aluminum
Thread Type: NPTF

Product Number	Thread Type	A	B (IN)	B	C	D	F	H	L	M	CH
82850-02	NPTF	1/8"	1.378"	35 mm	22 mm	25 mm	4.5 mm	18 mm	26-36 mm	M12 x 0.75	15 mm
82850-04	NPTF	1/4"	1.811"	46 mm	30 mm	35 mm	6.5 mm	20 mm	26-36 mm	M12 x 0.75	15 mm
82850-06	NPTF	3/8"	1.968"	50 mm	30 mm	35 mm	6.5 mm	25 mm	32-42 mm	M18 x 1.5	22 mm
82850-08	NPTF	1/2"	2.362"	60 mm	40 mm	44 mm	6.5 mm	25 mm	32-44 mm	M18 x 1.5	22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
