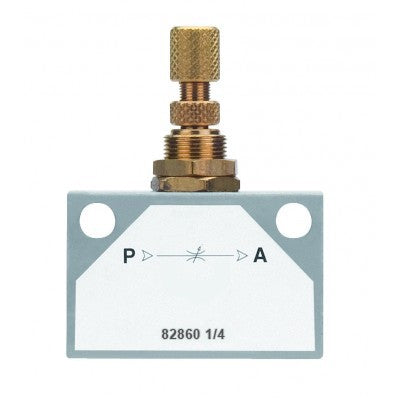

82860-06 AIGNEP | Functional (Flow Controls) Series | Inline Needle Valve | 3/8" Female NPTF
82860-06 by AIGNEP | Functional (Flow Controls) Series | Inline Needle Valve | 3/8" Female NPTF
82860-06 AIGNEP | Functional (Flow Controls) Series | Inline Needle Valve | 3/8" Female NPTF

82860-06 by AIGNEP | Functional (Flow Controls) Series | Inline Needle Valve | 3/8" Female NPTF

Save $15.00 Save $15.00
$37.50
$37.50 - $37.50
$37.50
$22.50
$22.50 - $22.50
$22.50
Specifications for Variant SKU: 82860-06 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPTF, 3/8in Female NPTF, Some Ends Match
Material(s): Anodized Aluminum

Inline Needle Valve Female - NPTF

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Anodized Aluminum
Thread Type: NPTF

Product Number Thread Type A B (IN) B C H D F L M CH
82860-02 NPTF 1/8" 1.378" 35 mm 22 mm 18 mm 25 mm 4.5 mm 26-36 mm M12 x 0.75 15 mm
82860-04 NPTF 1/4" 1.811" 46 mm 30 mm 20 mm 35 mm 6.5 mm 26-36 mm M12 x 0.75 15 mm
82860-06 NPTF 3/8" 1.968" 50 mm 30 mm 25 mm 35 mm 6.5 mm 32-42 mm M18 x 1.5 22 mm
82860-08 NPTF 1/2" 2.362" 60 mm 40 mm 25 mm 44 mm 6.5 mm 32-44 mm M18 x 1.5 22 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
