82880-04 AIGNEP | Functional (Flow Controls) Series | One Way Block Valve | 1/4" Swift-Fit Male x 1/4" NPT Female x 5/32" Tube
82880-04 by AIGNEP | Functional (Flow Controls) Series | One Way Block Valve | 1/4" Swift-Fit Male x 1/4" NPT Female x 5/32" Tube
82880-04 AIGNEP | Functional (Flow Controls) Series | One Way Block Valve | 1/4" Swift-Fit Male x 1/4" NPT Female x 5/32" Tube

82880-04 by AIGNEP | Functional (Flow Controls) Series | One Way Block Valve | 1/4" Swift-Fit Male x 1/4" NPT Female x 5/32" Tube

Save $30.65 Save $30.65
$76.62
$76.62 - $76.62
$76.62
$45.97
$45.97 - $45.97
$45.97
Specifications for Variant SKU: 82880-04 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male Swift-Fit, 1/4in NPT Female, 5/32in Push-to-Connect
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Uni-Directional Check Valve

Pressure Rating: 4.35 - 145 PSI
Temperature Range: -4 ° F - 176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

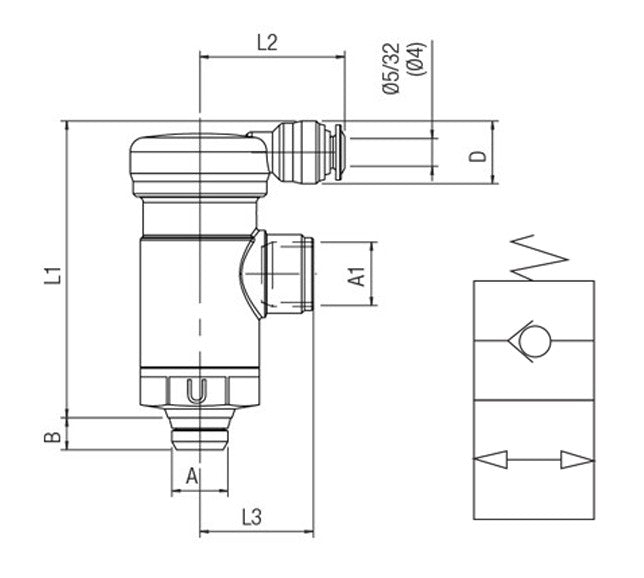

Product Number A A1 B D L1 L2 L3 CH
82880-02 1/8" 1/8" NPTF 5.5 mm 11 mm 50 mm 25 mm 18.5 mm 18 mm
82880-04 1/4" 1/4" NPTF 7 mm 11 mm 50.5 mm 25 mm 20.5 mm 18 mm
