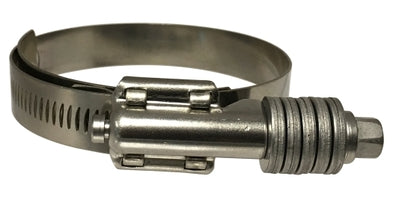

842024 (842-024) Midland Constant Torque Hose Clamp - 9/16" Width - Clamp Range: 1-1/16" to 2" - 304 Stainless Steel Band / 410 Stainless Steel Hex Screw

842024 by Midland | Constant Torque Hose Clamp | 9/16" Width | Clamp Range: 1-1/16" to 2" | 304 Stainless Steel Band / 410 Stainless Steel Hex Screw

Save $0.08 Save $0.08
$2.98
$2.98 - $2.98
$2.98
$2.90
$2.90 - $2.90
$2.90

Midland Industries
Constant Torque Hose Clamp - 304 Stainless Steel Band / 410 Stainless Steel Hex Screw

Purpose: To eliminate leaks by automatically incerasing or decreasing the clamps diameter, decreasing the need for retightening. Constant torque clamps have an extended tail on the band to protect soft hose or tube from being cut.

Services: Constant torque clamps are an excellent choice for fluctuating & extreme temperature applications, as well as thermal compensation.

Meet SAE J1508 specifications type "SLHD"

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 695 Units
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 842024 Midland
Material(s): 304 Stainless Steel, 410 Stainless Steel
Applicable Specs & Approvals: SAE J1508
Clamp Width: 0.5625
Minimum Clamp I.D.: 1.0625
Maximum Clamp I.D.: 2
Features:
  • .028" Band thickness
  • Band Material: 304 thickness
  • Band Width:
    • 9/16" for 45in-lb
    • 5/8" for 90in-lb
  • Band Material: 304 Stainless Steel
  • Housing: 304 Stainless Steel
  • Bridge: 410 Stainless Steel
  • Hex Screw: 410 Stainless Steel
Part Number Clamp Range Band Width Torque Screw Size Weight
(Lbs.)
842010
(842-010)		 9/16" - 1-1/16" 9/16" 72 in-lb 5/16" 0.106
842012
(842-012)		 11/16" - 1-1/4" 9/16" 72 in-lb 5/16" 0.108
842016
(842-016)		 13/16" - 1-1/2" 9/16" 72 in-lb 5/16" 0.112
842020
(842-020)		 13/16" - 1-3/4" 9/16" 72 in-lb 5/16" 0.119
842024
(842-024)		 1-1/16" - 2" 9/16" 72 in-lb 5/16" 0.121
842200
(842-200)		 1-1/4" - 2-1/8" 5/8" 130 in-lb High 3/8" 0.207
842250
(842-250)		 1-3/4" - 2-5/8" 5/8" 130 in-lb High 3/8" 0.216
842300
(842-300)		 2-1/4" - 3-1/8" 5/8" 130 in-lb High 3/8" 0.220
842350
(842-350)		 2-3/4" - 3-5/8" 5/8" 130 in-lb High 3/8" 0.225
842400
(842-400)		 3-1/4" - 4-1/8" 5/8" 130 in-lb High 3/8" 0.231
842450
(842-450)		 3-3/4" - 4-5/8" 5/8" 130 in-lb High 3/8" 0.238
842500
(842-500)		 4-1/4" - 5-1/8" 5/8" 130 in-lb High 3/8" 0.256
