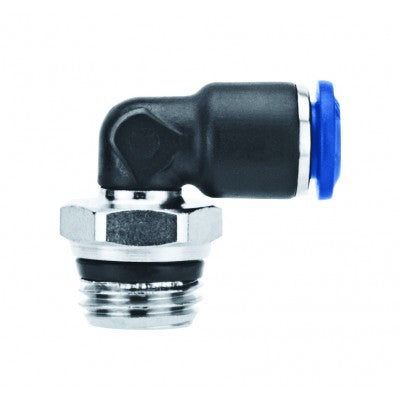

85110-04-08 AIGNEP | 85 Series | Swivel 90° Elbow Composite | 1/4" Tube x 1/2" Swift-Fit Male | Pack of 10

85110-04-08 by AIGNEP | 85 Series | Swivel Composite | 1/4" Tube x 1/2" Swift-Fit Male | 90° Elbow | Pack of 10

Save $15.25

$38.13

$38.13 - $38.13

$38.13

$22.88

$22.88 - $22.88

$22.88

Package Quantity: 10 ea

Specifications for Variant SKU: 85110-04-08 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Push-to-Connect, 1/2in Male Swift-Fit
Material(s):	Nylon

Swivel Elbow Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number	Tube	A	B (IN)	B	L1	L2	CH1	CH2	D
85110-02-02	1/8"	1/8"	0.216"	5.5 mm	15.5 mm	16.5 mm	7 mm	13 mm	10 mm
85110-02-04	1/8"	1/4"	0.275"	7 mm	15.5 mm	18 mm	7 mm	15 mm	10 mm
85110-53-32	5/32"	10-32	0.157"	4 mm	16.5 mm	14.5 mm	7 mm	9 mm	10 mm
85110-53-02	5/32"	1/8"	0.216"	5.5 mm	16.5 mm	16.5 mm	7 mm	13 mm	10 mm
85110-53-04	5/32"	1/4"	0.275"	7 mm	16.5 mm	18 mm	7 mm	15 mm	10 mm
85110-04-32	1/4"	10-32	0.157"	4 mm	20.5 mm	15.5 mm	9 mm	9 mm	12.5 mm
85110-04-02	1/4"	1/8"	0.216"	5.5 mm	20.5 mm	17.5 mm	9 mm	13 mm	12.5 mm
85110-04-04	1/4"	1/4"	0.275"	7 mm	20.5 mm	19 mm	9 mm	15 mm	12.5 mm
85110-04-06	1/4"	3/8"	0.295"	7.5 mm	20.5 mm	20 mm	9 mm	17 mm	12.5 mm
85110-04-08	1/4"	1/2"	0.354"	9 mm	20.5 mm	22 mm	9 mm	21 mm	12.5 mm
85110-05-02	5/16"	1/8"	0.216"	5.5 mm	22 mm	18.5 mm	10 mm	13 mm	14 mm
85110-05-04	5/16"	1/4"	0.275"	7 mm	22 mm	20 mm	10 mm	15 mm	14 mm
85110-05-06	5/16"	3/8"	0.295"	7.5 mm	22 mm	20.5 mm	10 mm	17 mm	14 mm
85110-05-08	5/16"	1/2"	0.354"	9 mm	22 mm	23 mm	10 mm	21 mm	14 mm
85110-06-04	3/8"	1/4"	0.275"	7 mm	26.5 mm	22 mm	13 mm	16 mm	17 mm
85110-06-06	3/8"	3/8"	0.295"	7.5 mm	26.5 mm	22 mm	13 mm	17 mm	17 mm
85110-06-08	3/8"	1/2"	0.354"	9 mm	26.5 mm	24.5 mm	13 mm	21 mm	17 mm
85110-08-04	1/2"	1/4"	0.275"	7 mm	30.5 mm	23 mm	16 mm	16 mm	20 mm
85110-08-06	1/2"	3/8"	0.295"	7.5 mm	30.5 mm	23 mm	16 mm	17 mm	20 mm
85110-08-08	1/2"	1/2"	0.354"	9 mm	30.5 mm	25.5 mm	16 mm	21 mm	20 mm
