85160-06 AIGNEP | 85 Series | Plug-In 45° Elbow | 3/8" Tube x 3/8" Stud | Pack of 10
85160-06 by AIGNEP | 85 Series | Plug-In | 3/8" Tube x 3/8" Stud | 45° Elbow | Pack of 10
85160-06 AIGNEP | 85 Series | Plug-In 45° Elbow | 3/8" Tube x 3/8" Stud | Pack of 10

85160-06 by AIGNEP | 85 Series | Plug-In | 3/8" Tube x 3/8" Stud | 45° Elbow | Pack of 10

Save $8.80 Save $8.80
$22.00
$22.00 - $22.00
$22.00
$13.20
$13.20 - $13.20
$13.20

Package Quantity: 10 ea

Specifications for Variant SKU: 85160-06 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s): Nylon

45° Swivel Elbow Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon

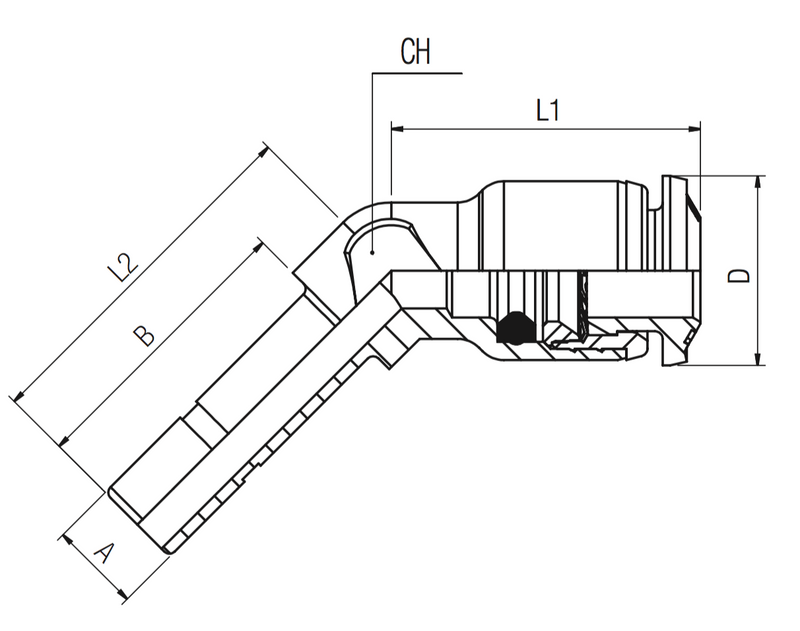

Product Number Tube A B (IN) B L1 L2 CH1 D
85160-53 5/32" 5/32" 0.669" 17 mm 12.5 mm 21 mm 7 mm 10 mm
85160-04 1/4" 1/4" 0.748" 19 mm 20.5 mm 23.5 mm 9 mm 12 mm
85160-05 5/16" 5/16" 0.787" 20 mm 22 mm 25 mm 10 mm 14 mm
85160-06 3/8'' 3/8" 0.886" 22.5 mm 26.5 mm 30 mm 13 mm 17 mm
85160-08 1/2'' 1/2'' 1.004" 25.5 mm 30 mm 33.5 mm 16 mm 20 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
