85160-53 AIGNEP | 85 Series | Plug-In 45° Elbow | 5/32" Tube x 5/32" Stud | Pack of 10

85160-53 by AIGNEP | 85 Series | Plug-In | 5/32" Tube x 5/32" Stud | 45° Elbow | Pack of 10

Save $6.86

$16.46

$16.46 - $16.46

$16.46

$9.60

$9.60 - $9.60

$9.60

Package Quantity: 10 ea

Specifications for Variant SKU: 85160-53 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	45 Degree
Ends Configuration:	5/32in Push-to-Connect, 5/32in Push-to-Connect, Some Ends Match
Material(s):	Nylon

45° Swivel Elbow Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon

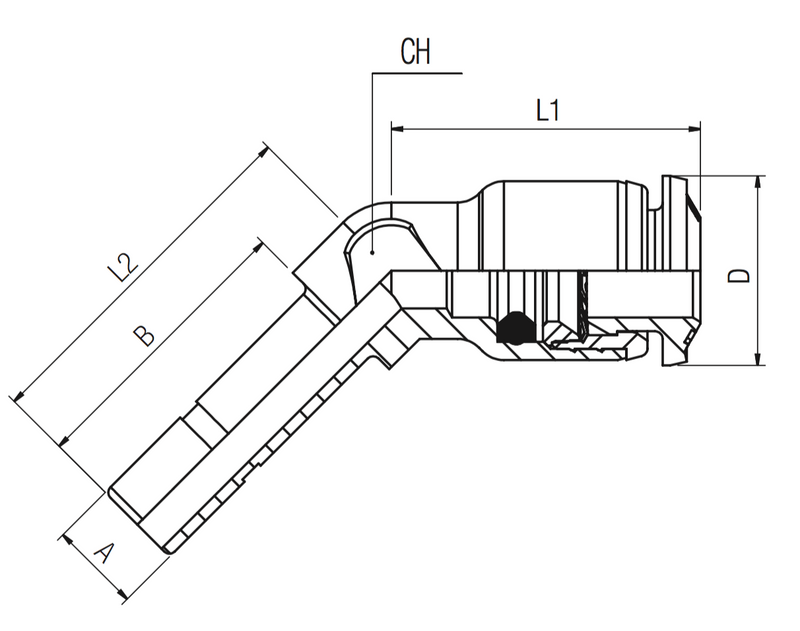

Product Number	Tube	A	B (IN)	B	L1	L2	CH1	D
85160-53	5/32"	5/32"	0.669"	17 mm	12.5 mm	21 mm	7 mm	10 mm
85160-04	1/4"	1/4"	0.748"	19 mm	20.5 mm	23.5 mm	9 mm	12 mm
85160-05	5/16"	5/16"	0.787"	20 mm	22 mm	25 mm	10 mm	14 mm
85160-06	3/8''	3/8"	0.886"	22.5 mm	26.5 mm	30 mm	13 mm	17 mm
85160-08	1/2''	1/2''	1.004"	25.5 mm	30 mm	33.5 mm	16 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
