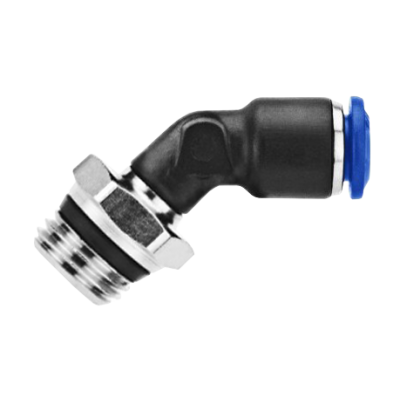

85170-06-04 AIGNEP | 85 Series | 45° Swivel Elbow | 3/8" Tube x 1/4" Swift-Fit Male | Pack of 10

85170-06-04 by AIGNEP | 85 Series | Swivel | 3/8" Tube x 1/4" Swift-Fit Male | 45° Elbow | Pack of 10

Save $15.06

$37.65

$37.65 - $37.65

$37.65

$22.59

$22.59 - $22.59

$22.59

Package Quantity: 10 ea

Specifications for Variant SKU: 85170-06-04 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/8in Push-to-Connect, 1/4in Male Swift-Fit
Material(s):	Nylon
Seal Material(s):	NBR 70

45° Swivel Elbow SWIFTFIT Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon
Thread Seal: NBR 70

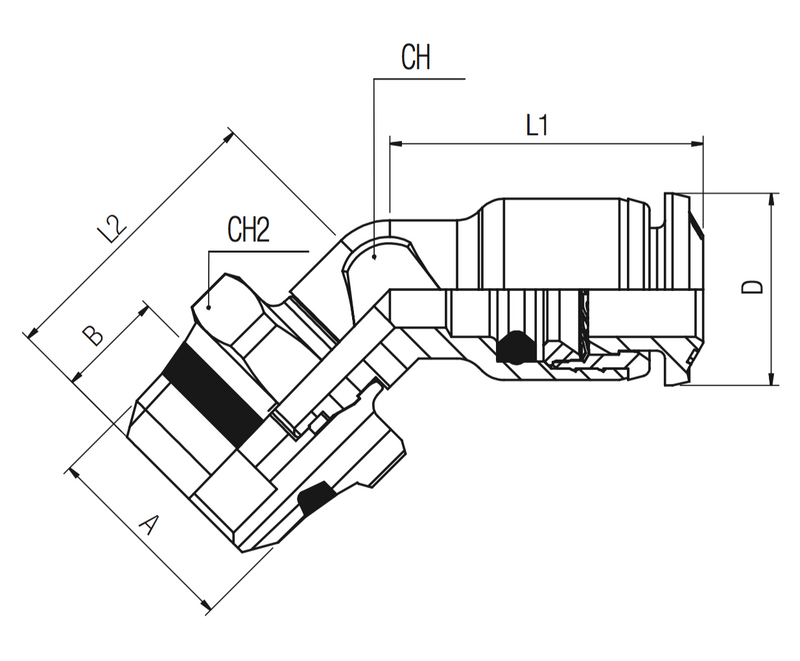

Product Number	Tube	A	B (IN)	B	L1	L2	CH1	CH2	D
85170-53-02	5/32"	1/8"	0.217"	5.5 mm	12.5 mm	16.5 mm	7 mm	13 mm	10 mm
85170-04-02	1/4"	1/8"	0.217"	5.5 mm	20.5 mm	17.5 mm	9 mm	13 mm	10 mm
85170-04-04	1/4"	1/4"	0.276"	7 mm	20.5 mm	18.9 mm	9 mm	15 mm	12 mm
85170-05-02	5/16"	1/8"	0.217"	5.5 mm	22 mm	18.5 mm	10 mm	13 mm	14 mm
85170-05-04	5/16"	1/4"	0.276"	7 mm	22 mm	20 mm	10 mm	15 mm	14 mm
85170-05-06	5/16"	3/8"	0.295"	7.5 mm	22 mm	20.5 mm	10 mm	17 mm	14 mm
85170-06-04	3/8''	1/4"	0.276"	7 mm	26.5 mm	21.8 mm	13 mm	16 mm	17 mm
85170-06-06	3/8''	3/8"	0.295"	7.5 mm	26.5 mm	24.3 mm	13 mm	17 mm	17 mm
85170-06-08	3/8''	1/2"	0.354"	9 mm	26.5 mm	23.1 mm	13 mm	21 mm	17 mm
85170-08-04	1/2''	1/4"	0.276"	7 mm	30 mm	23.1 mm	16 mm	16 mm	20 mm
85170-08-06	1/2''	3/8"	0.295"	7.5 mm	30 mm	25.5 mm	16 mm	17 mm	20 mm
85170-08-08	1/2''	1/2"	0.354"	9 mm	30 mm	21.8 mm	16 mm	21 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
